Airlocks

1008 Drop Thru Airlock

Walinga's 1210 Drop Thru Airlock - The second smallest of the Walinga airlock family. Designed for maximum efficiency and minimal bulk damage the airlock housing is precision machined from a cast iron shell for unequaled performance. The 10 vane fabricated steel rotor has adjustable stainless steel tips for longer life. Walinga's latest innovations include the modification of the inlet and outlet ports with flow contours for maximum capacity. To minimize bulk damage and improve performance, a special rotor wiper levels the pockets. The entire assembly is powered by an electric gear box. A chain drive transfers power to the airlock. Each system can be customized to your production needs.

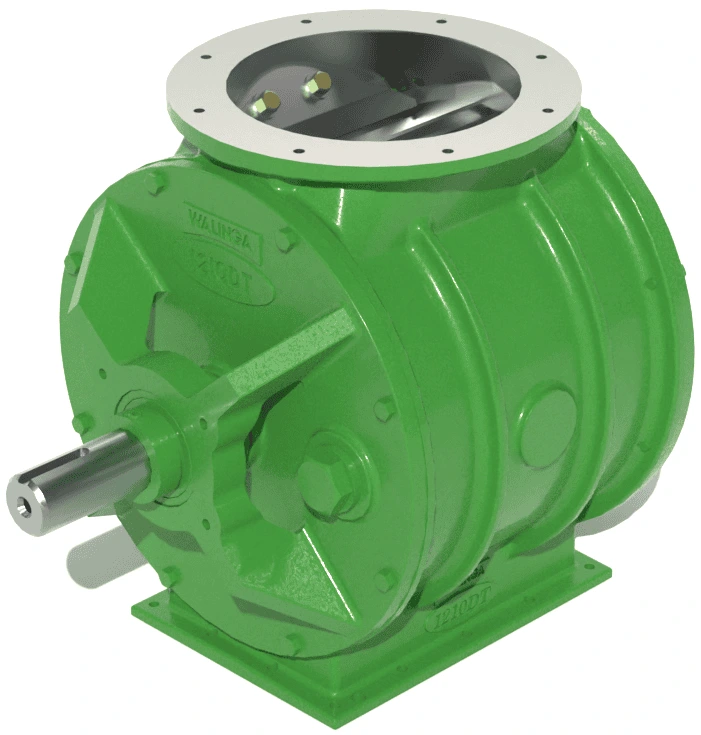

1210 Drop Thru Airlock

Walinga's 1210 Drop Thru Airlock - The second smallest of the Walinga airlock family. Designed for maximum efficiency and minimal bulk damage the airlock housing is precision machined from a cast iron shell for unequaled performance. The 10 vane fabricated steel rotor has adjustable stainless steel tips for longer life. Walinga's latest innovations include the modification of the inlet and outlet ports with flow contours for maximum capacity. To minimize bulk damage and improve performance, a special rotor wiper levels the pockets. The entire assembly is powered by an electric gear box. A chain drive transfers power to the airlock. Each system can be customized to your production needs.

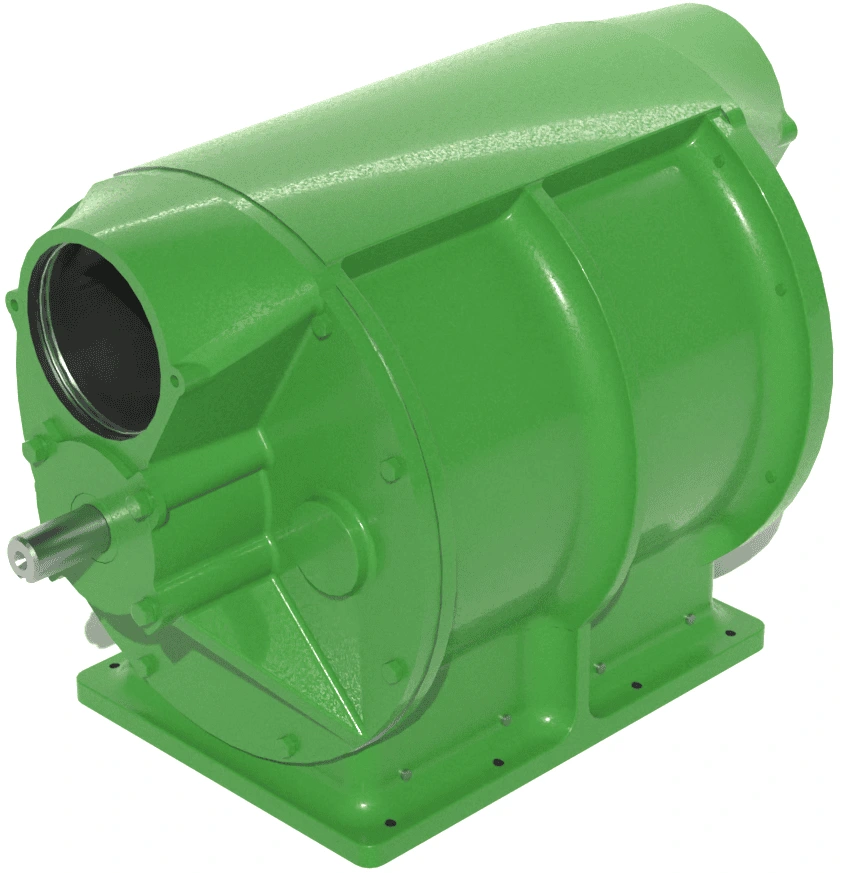

1314 Blow Thru Airlock

Walinga's 1314 Blow Thru Airlock - Two of three Walinga airlocks with a 0.8 Cubic foot per revolution (23 Litres per revolution) capacity. Available here as a Blow Thru model with either a 4" or 5" inlet/outlet. Designed for maximum efficiency and minimal bulk damage the airlock housing is precision machined from a cast iron shell for unequaled performance. The 10 vane fabricated steel rotor has adjustable stainless steel tips for longer life. Walinga's latest innovations include the modification of the inlet and outlet ports with flow contours for maximum capacity. To minimize bulk damage and improve performance, a special rotor wiper levels the pockets. The entire assembly is powered by an electric gear box. A chain drive transfers power to the airlock and the units ship with maintenance free factory sealed bearings. Each system can be customized to your production needs.

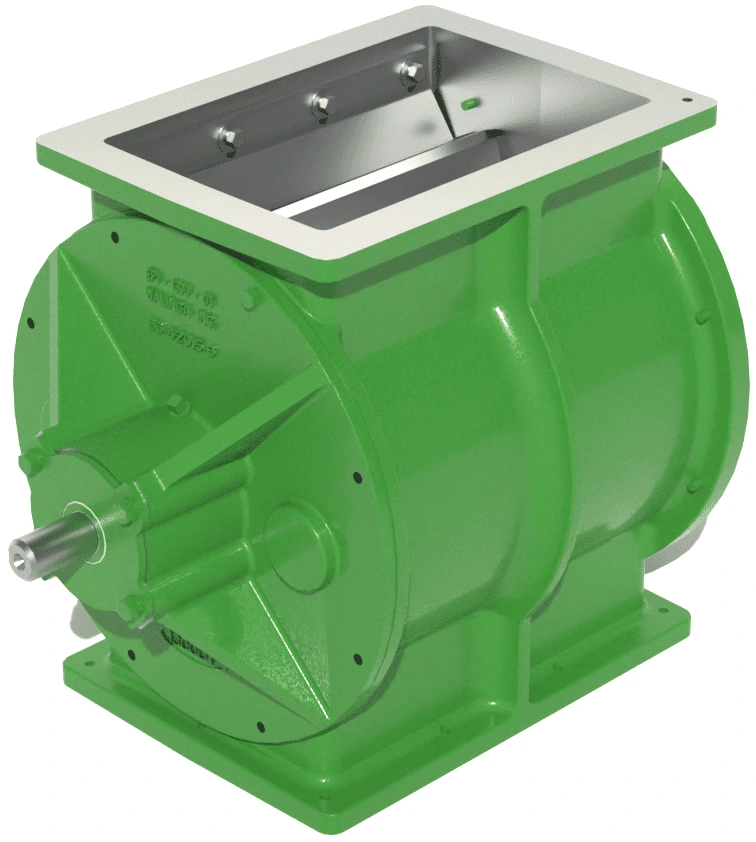

1314 Drop Thru Airlock

Walinga's 1314 Drop-Thru Airlock - One of three Walinga airlocks with a 0.8 Cubic foot per revolution (23 Litres per revolution) capacity. Designed for maximum efficiency and minimal bulk damage the airlock housing is precision machined from a cast iron shell for unequaled performance. The 10 vane fabricated steel rotor has adjustable stainless steel tips for longer life. Walinga's latest innovations include the modification of the inlet and outlet ports with flow contours for maximum capacity. To minimize bulk damage and improve performance, a special rotor wiper levels the pockets. The entire assembly is powered by an electric gear box. A chain drive transfers power to the airlock and the units ship with maintenance free factory sealed bearings. Each system can be customized to your production needs. Also available as a Blow-Thru model with 4" or 5" outlet.

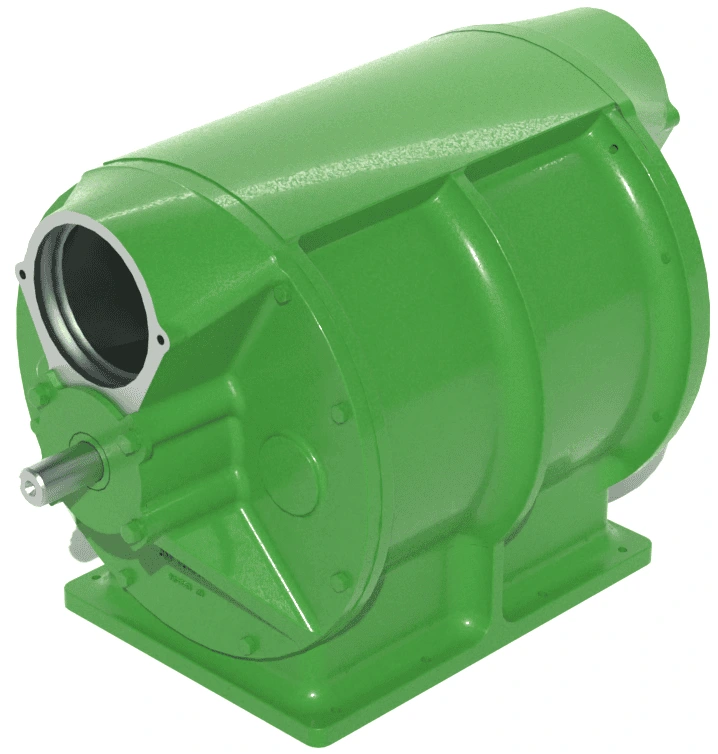

1618 Blow Thru Airlock

Walinga's 1618 Blow Thru Airlock - A mid sized Walinga airlock with a 1.6 Cubic foot per revolution (45 Litres per revolution) capacity. Available here as a Blow Thru model with 6" or 7" inlet/outlet. Designed for maximum efficiency and minimal bulk damage the airlock housing is precision machined from a cast iron shell for unequaled performance. The 10 vane fabricated steel rotor with adjustable Hardox square steel tips for longer life. To minimize bulk damage and improve performance, a special rotor wiper levels the pockets. The entire assembly is powered by an electric gear box. A chain drive transfers power to the airlock and the units ship with maintenance free factory sealed bearings. Each system can be customized to your production needs. Available in Drop-thru version.

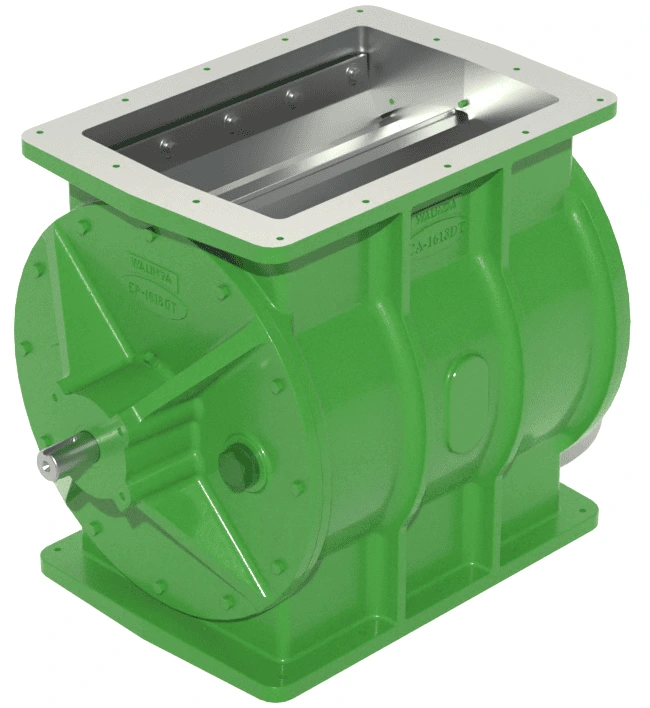

1618 Drop Thru Airlock

Walinga's 1618 Drop Thru Airlock - A mid sized Walinga airlock with a 1.6 Cubic foot per revolution (45 Litres per revolution) capacity. Designed for maximum efficiency and minimal bulk damage the airlock housing is precision machined from a cast iron shell for unequaled performance. The 10 vane fabricated steel rotor with adjustable Hardox square steel tips for longer life. To minimize bulk damage and improve performance, a special rotor wiper levels the pockets. The entire assembly is powered by an electric gear box. A chain drive transfers power to the airlock and the units ship with maintenance free factory sealed bearings. Each system can be customized to your production needs. Also available as a Blow Thru model with 6" or 7" inlet/outlet.

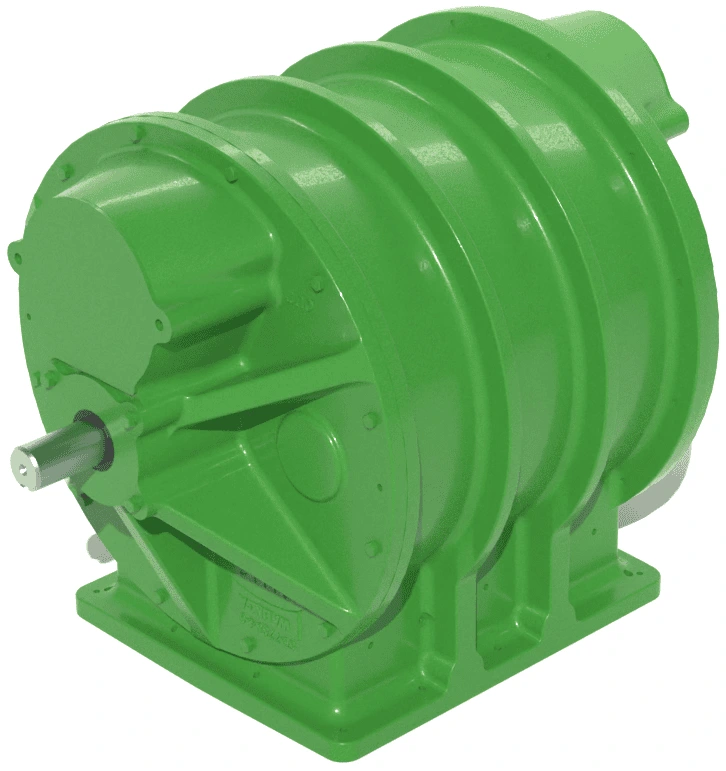

2018 Blow Thru Airlock

Walinga's 2018 Blow Thru Airlock - A large sized Walinga airlock with a 2.69 Cubic foot per revolution (76 Litres per revolution) capacity. Designed for maximum efficiency and minimal bulk damage the airlock housing is precision machined from a cast iron shell for unequaled performance. The 10 vane fabricated steel rotor with adjustable Hardox square steel tips for longer life. To minimize bulk damage and improve performance, a special rotor wiper levels the pockets. The entire assembly is powered by an electric gear box. A chain drive transfers power to the airlock and the units ship with maintenance free factory sealed bearings. Each system can be customized to your production needs. The 2018 is available only as a Blow Thru model 7" inlet/outlet.

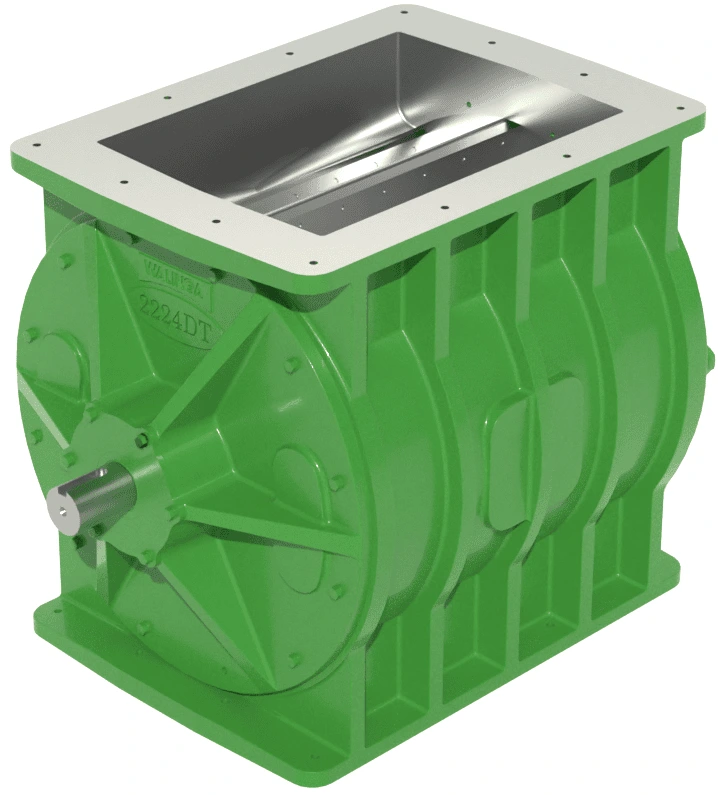

2224 Drop Thru Airlock

Walinga's 2224 Drop Thru Airlock - Walinga's largest airlock with a 4.44 Cubic foot per revolution (126 Litres per revolution) capacity. Designed for maximum efficiency and minimal bulk damage the airlock housing is precision machined from a cast iron shell for unequaled performance. The 9 vane fabricated steel rotor with adjustable Hardox square steel tips for longer life. To minimize bulk damage and improve performance, a special rotor wiper levels the pockets. The entire assembly is powered by an electric gear box. A chain drive transfers power to the airlock and the units ship with maintenance free factory sealed bearings. Each system can be customized to your production needs. The 2224 is available only as a Drop Thru model.
