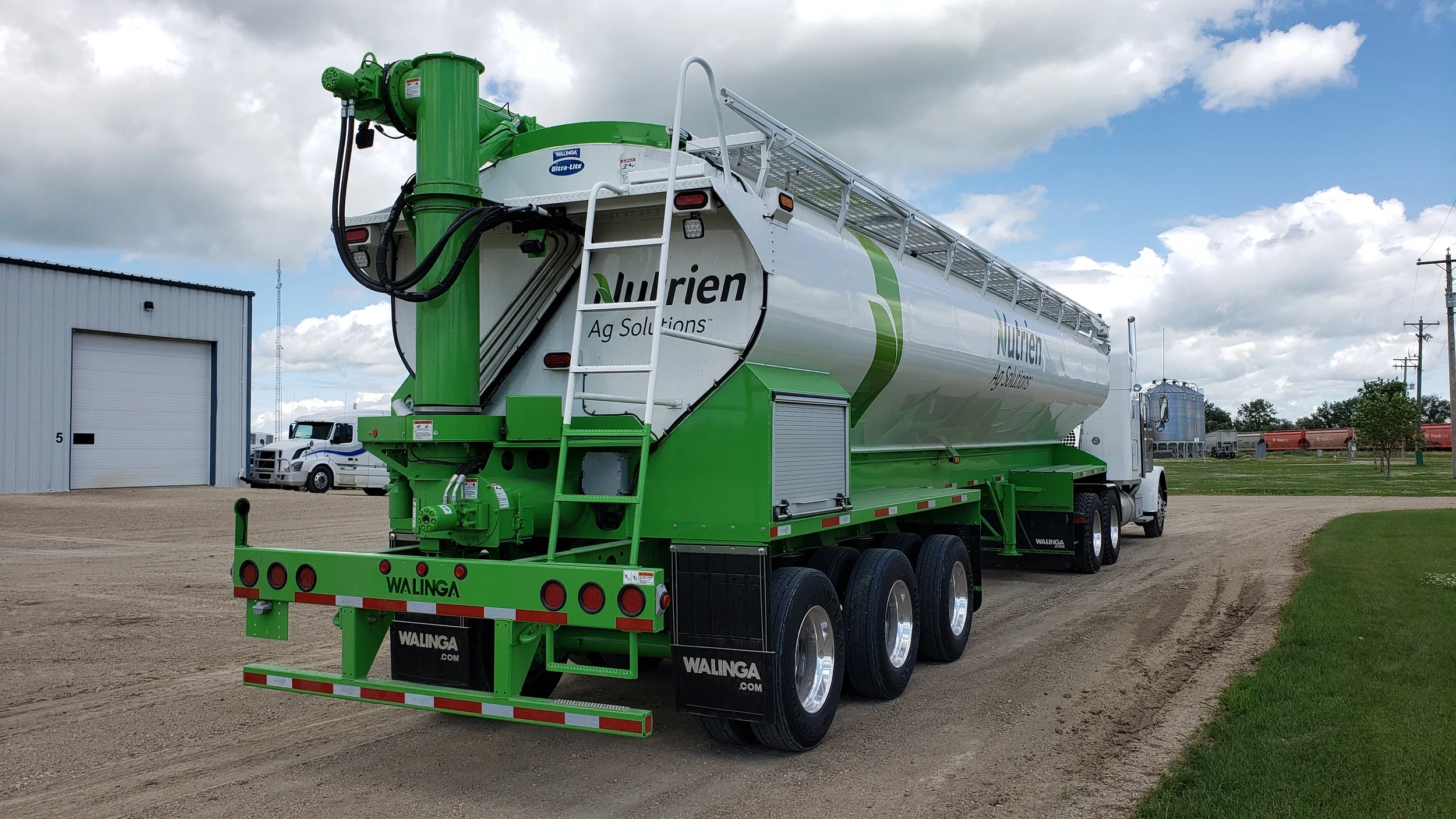

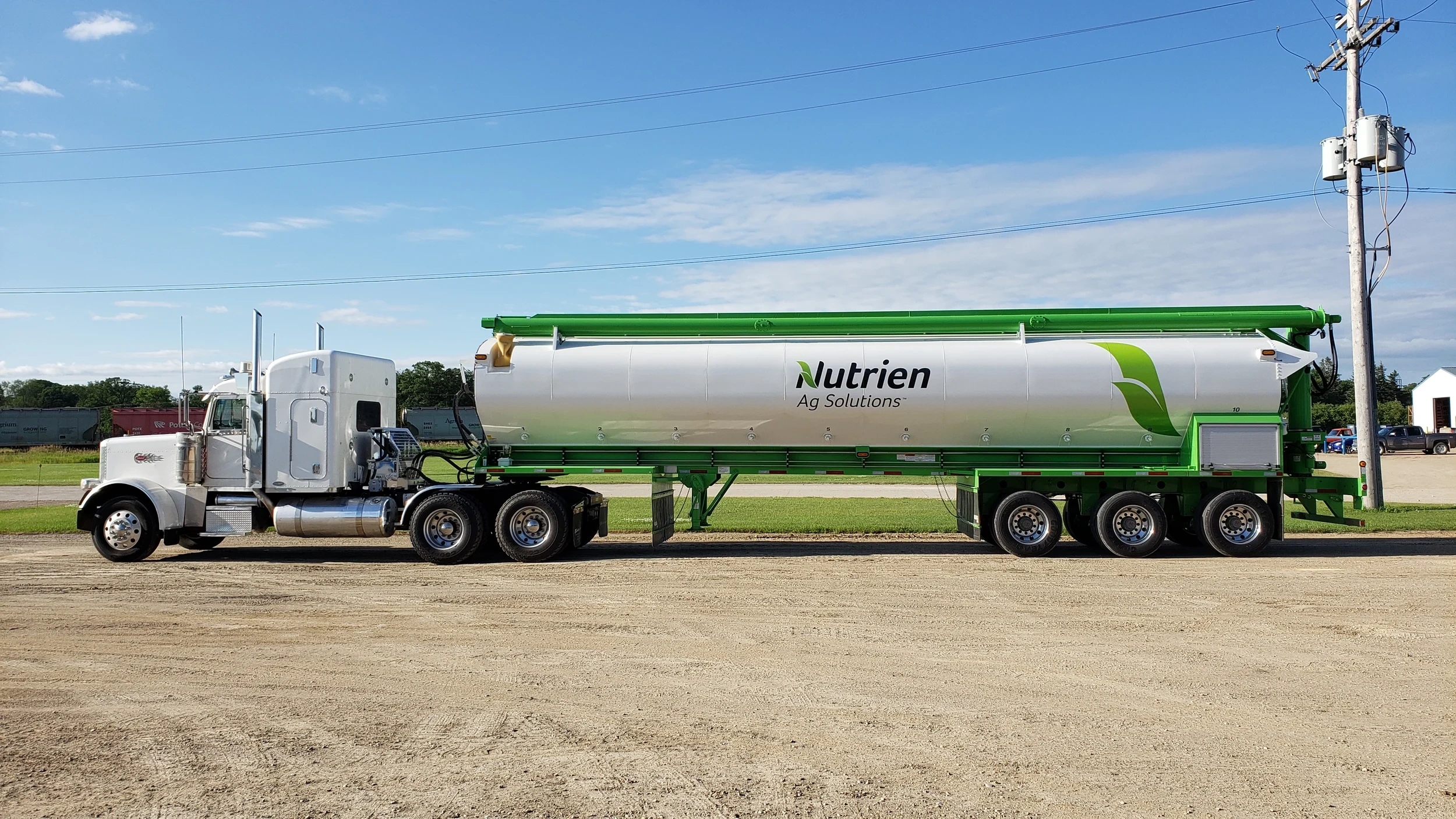

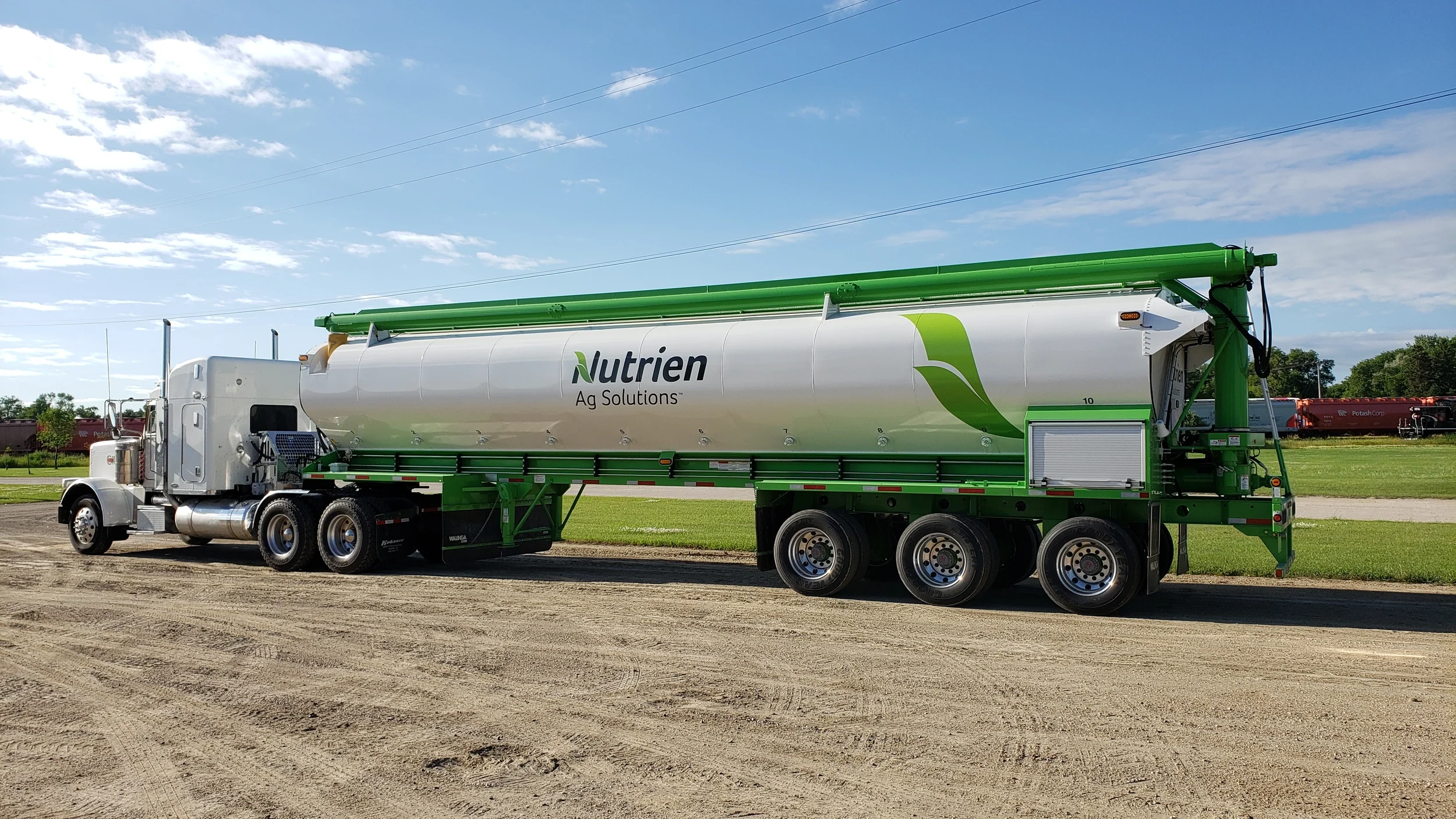

"Building any body for anybody" challenges Walinga engineers to accommodate a wide variety of granular product, each one with unique characteristics requiring unique transfer solutions. Bulk fertilizer transport is one such market specific solution. Delivering fertilizer directly to client bins offers a range of benefits; increased efficiency, lowered operating costs, improved customer service, improved customer loyalty, customization opportunities, reduced environmental impact and reduced contamination. Most of all it removes all of the farmers required labour and hassle associated with bagged product management. Utilizing a Walinga Fertilizer Tender lends itself to a more efficient, profitable and sustainable fertilizer delivery business. Take it up a notch, further maximizing returns with the fully specified high performance Low-Pro Ultra-Lite HOAG units.
Specified to your needs, engineered for maximum uptime, and backed by unrivaled support.
See why Walinga Fertilizer trailers go above and beyond to provide you with a trailer that is durable, efficient, and easy to maintain.
See More

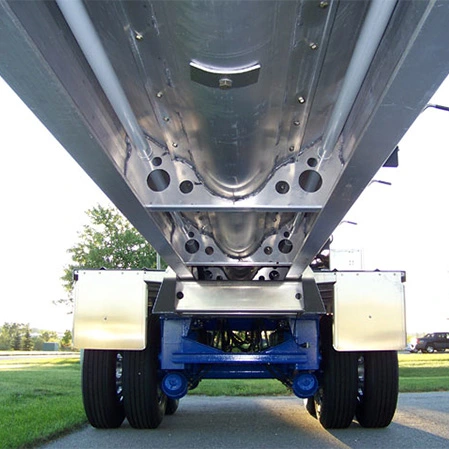

Extremely durable and lightweight aluminum construction. The only trailer available with 100% extruded base. The extruded base allows engineering to incorporate strength where strength is needed. This is something formed bases cannot give you.
One-piece extruded components offer added strength as well as added peace of mind. Extruded frames allow for "Frame Flex" without compromising rigidity of the unit. Less weight improves fuel efficiency.

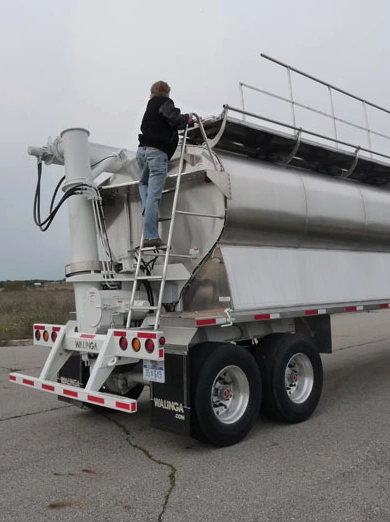

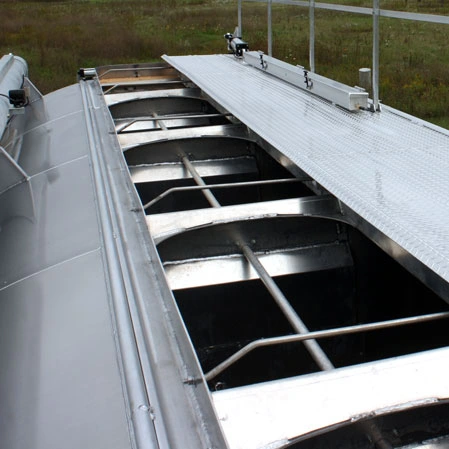

Aluminum Expanded Metal walkways offer easy access to entire top side of the trailer. Shown here with hydraulically actuated hand rail.

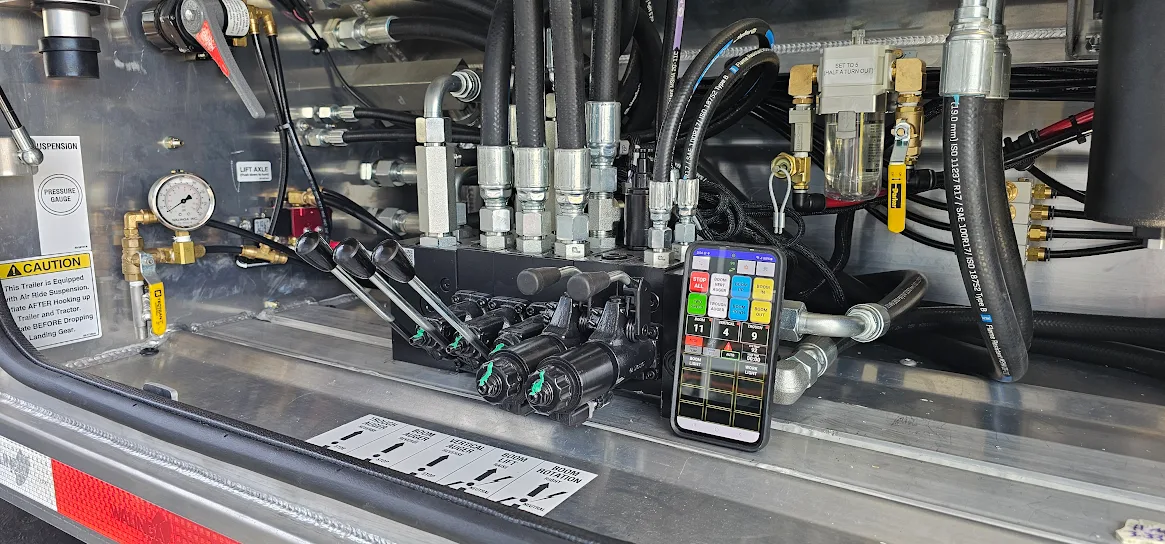

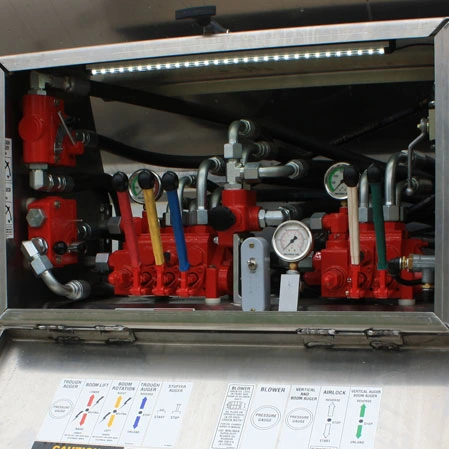

Walinga trailers feature V-20 hydraulic controls that are easily accessible and easy to understand and operate. Superior to flexible hoses, elbow hydraulic fittings promote efficient fluid flow.

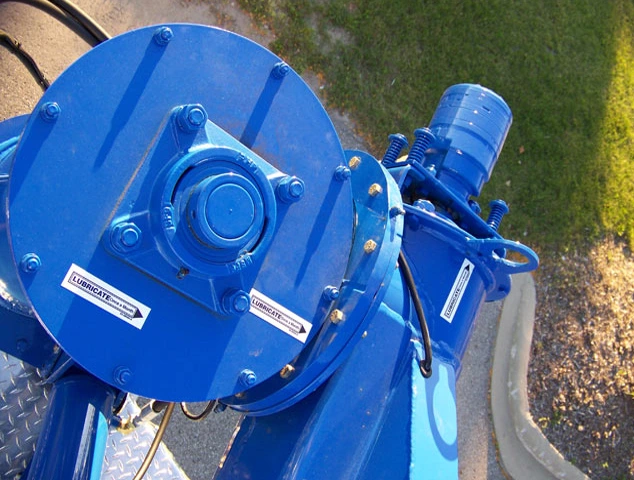

Walinga trailers are built to last, with every component engineered to ensure peak performance day in and day out. Main auger tube diameter, thickness of flighting, major shaft size, stub shaft, and bearings are all the thickest and/or heaviest in the industry. Durability and longevity are the priority.

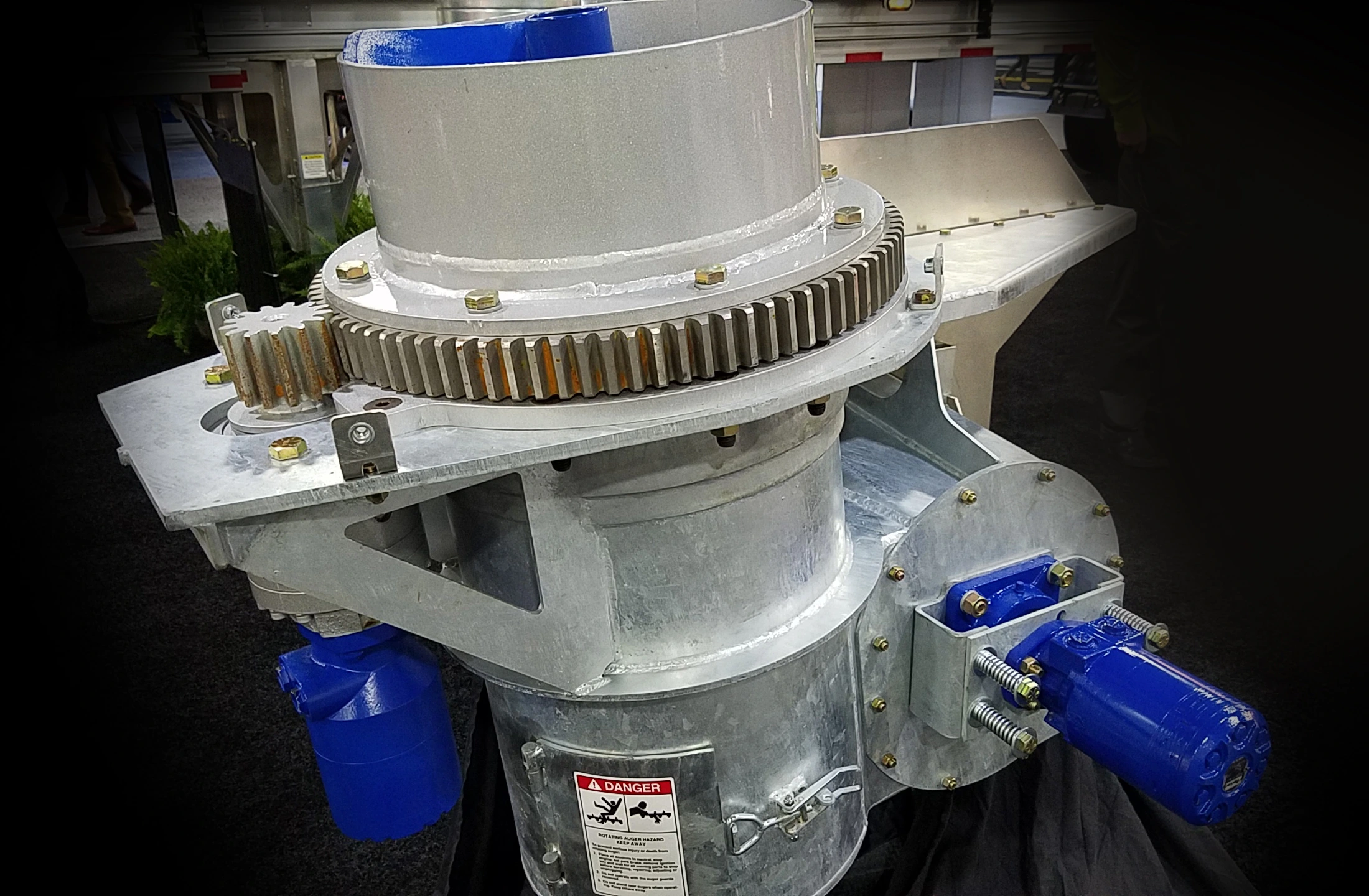

The rotation of the boom is by means of RC80 primary reduction and RD50 secondary reduction drives. Rated strength is 14,000 lbs. (6343 kg). Hydraulic over load protection is provided through a cross over relief valve.
Form follows function. A customer once described their newly received unit as "a work of art." The beauty of a well-engineered product is in the details. Well-designed hydraulic systems use best-practice solutions to minimize fatigue and improve performance. Maintenance procedures are simplified when service needs are considered.

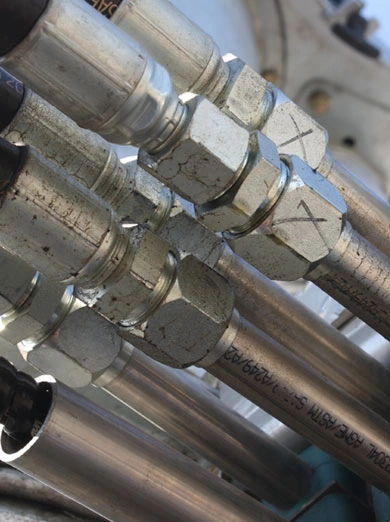

Heavy duty hydraulic tubing ensures the hydraulic system performs 100% and lasts the lifetime of the trailer.

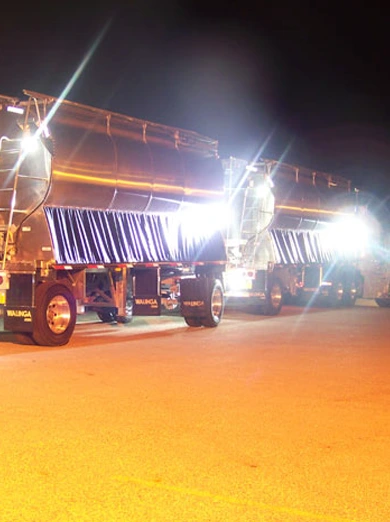

D.O.T. lighting ensures everyone around you can see you in all conditions.

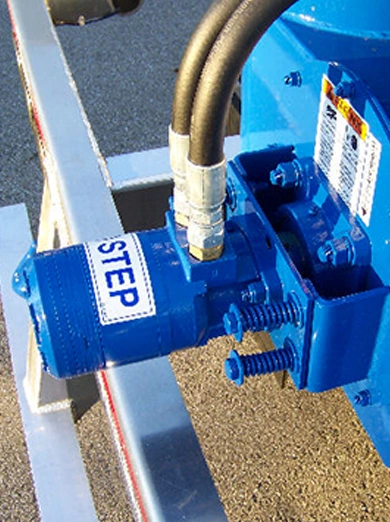

Spring Mounted motors were developed to provide longer life of the key components. Coupled with our Unique Spline Inserts motors and bearings last longer and are easier to change out. A Walinga Exclusive!

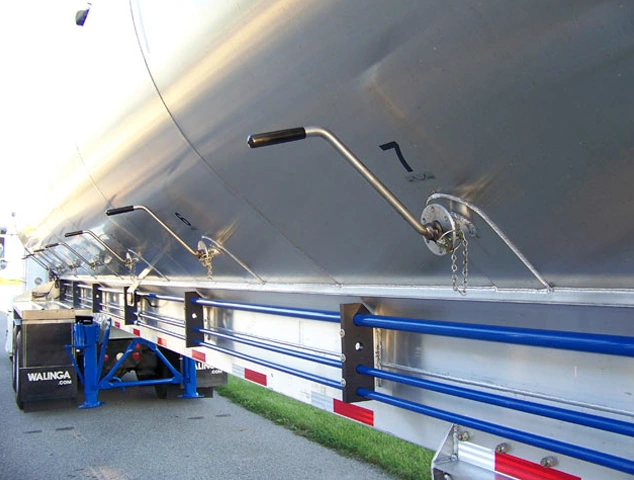

Inverted "V" gates allow each compartment to be individually discharged of its load through selective operation of the gates. Manual type rack & pinion are standard. Air operated gates are offered as an option. With the inverted "V" gates, the gates can be closed "against the load."
Walinga's line of Fertilizer Tender Units are destined to become the equipment of choice. These units deliver operators maximum load capabilities, minimum weight to strength ratio, and of course Walinga's low maintenance requirements.
See More

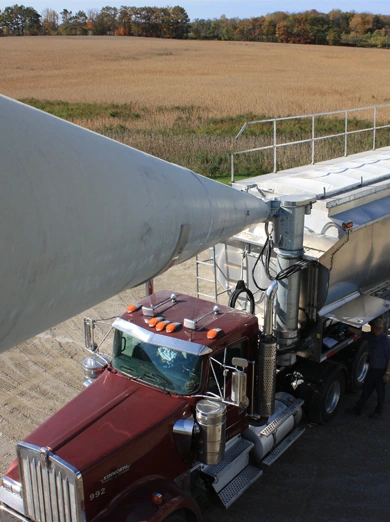

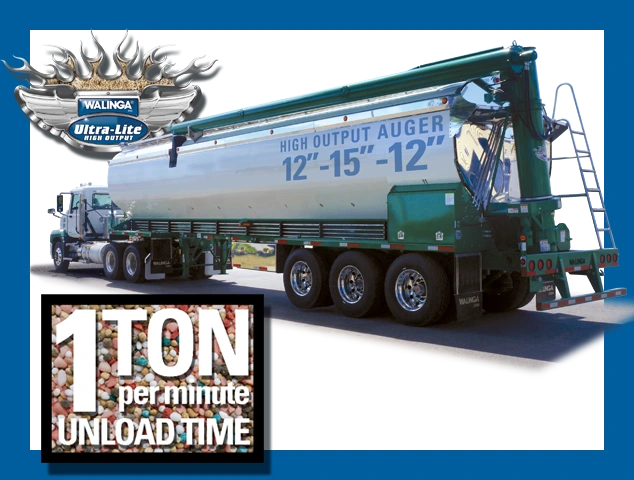

Size does matter. Walinga's massive 12" floor auger, 15" vertical auger, and 12" boom auger combination can unload at speeds up to one ton per minute. Speeds will vary depending upon product characteristics and environmental conditions.
Aerodynamic, Saves on Fuel, Includes Anti-Rollover, All Aluminum, Smart Bin

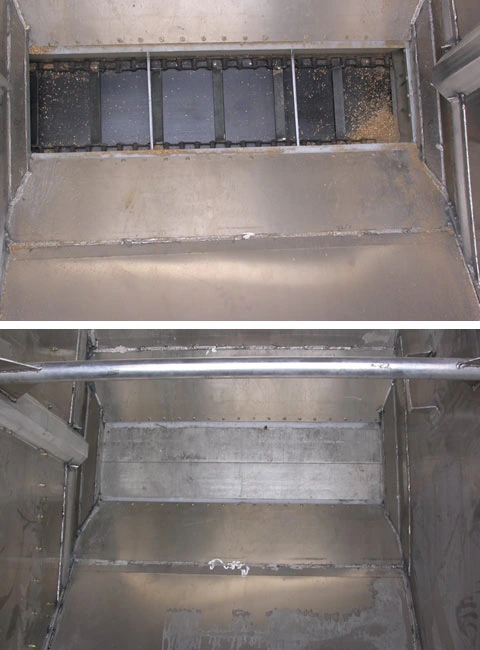

Large horizontal slide gates are great for all fertilizer bulk, especially for dropping "sticky" bulk commodities. Horizontal slide gates prevent product from bridging at the bottom. Available standard with manual operation. Air operated gates may be optioned with our in-cab controller.
Remotely control various functions from the comfort of the cab or anywhere else nearby. Choose the robust push button OMNIX remote to manage START, STOP, and four other functions or use our tough Android tablet to manage dozens of functions. Both units' functions are fully customizable and are typically delivered fully programmed.

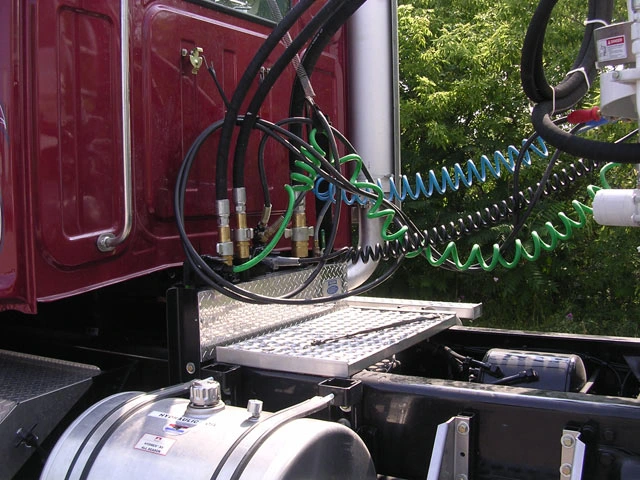

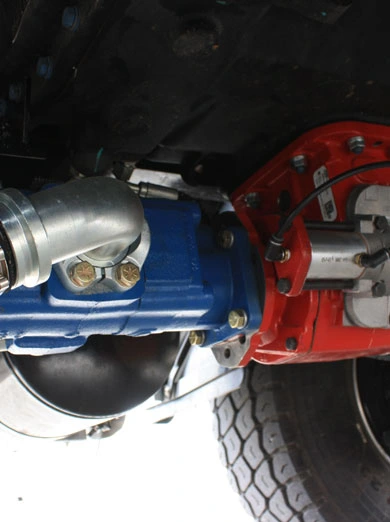

Heavy Duty tractor wet kits are designed to keep your Walinga trailer running strong using only the best components.

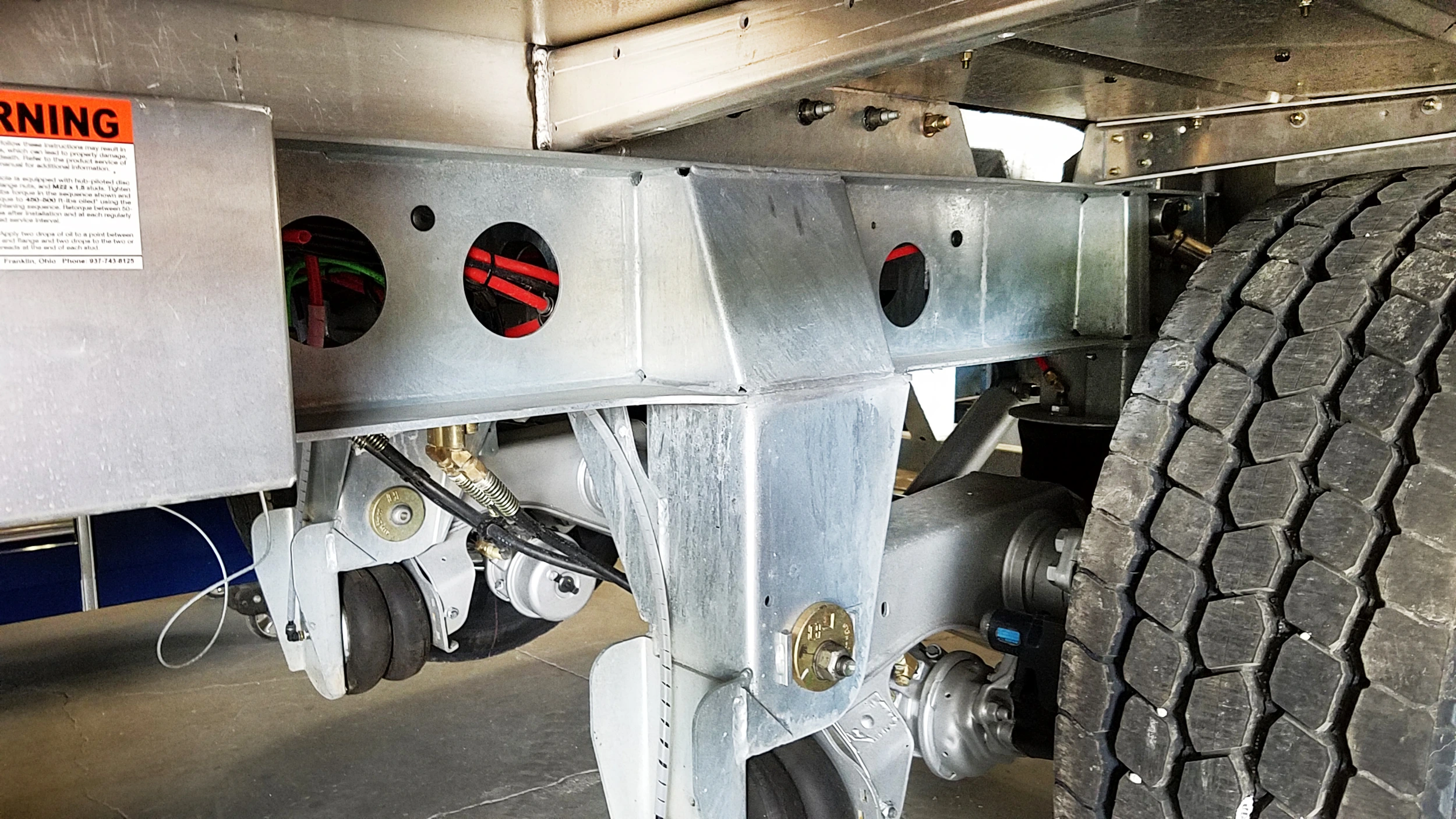

Galvanizing aluminum protects aluminum from the effects of corrosion. A zinc coating protects the aluminum from acidic assaults from things like ocean spray, acid rain, road salts, or similar corrosives.

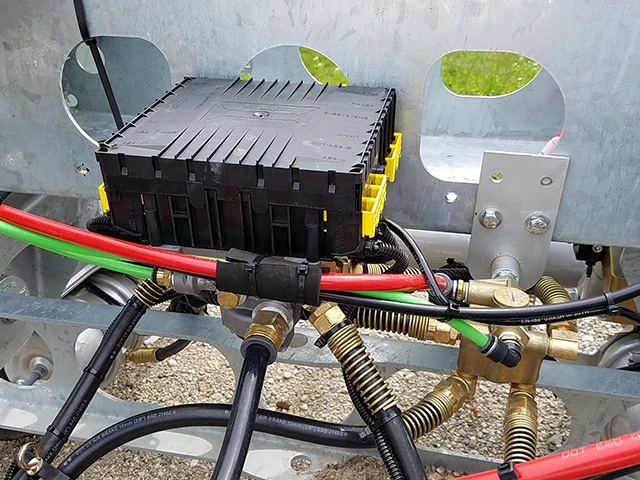

This controller, known as SmartTrac by MeritorWabco, monitors the vehicle's rollover threshold and activates to slow the vehicle when the threshold is exceeded. After the conditions cease, normal vehicle operation resumes.

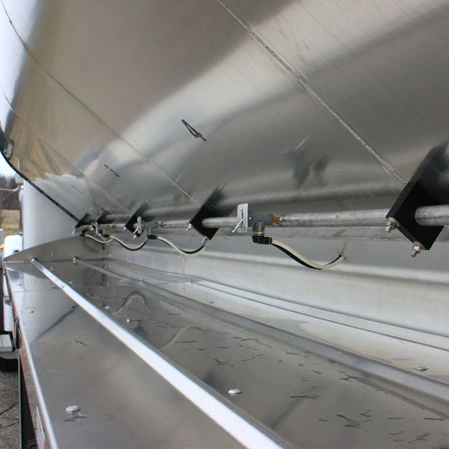

Controlled "by wire" from the cab or by remote control, air operated gates minimize a driver's need to leave the cab.

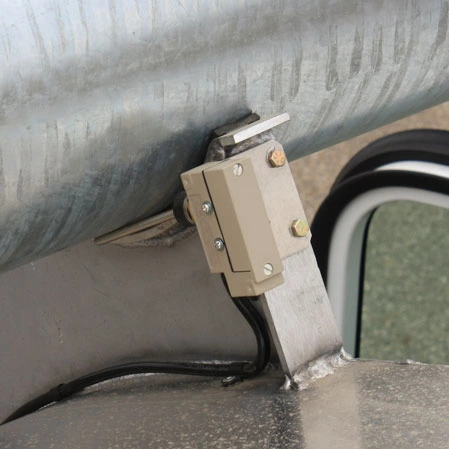

Added peace of mind knowing drivers will always be aware of boom saddle status before, during, and after deliveries.

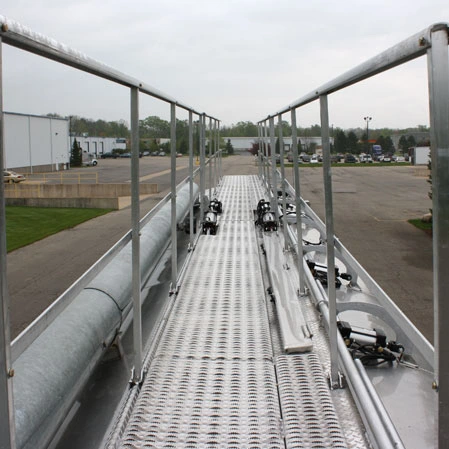

Minimize slips, trips, and falls while maximizing operator convenience with air operated handrails. Consider adding LED walkway task lighting.

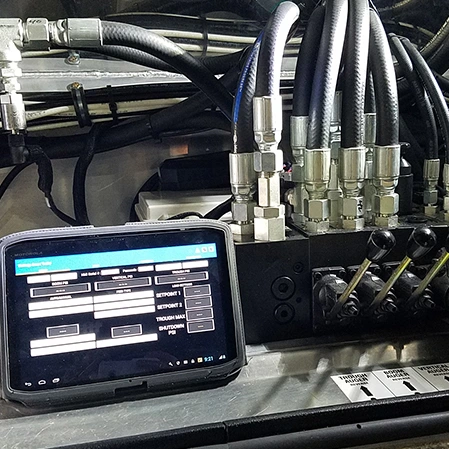

Monitor and operate most trailer functions from the comfort of the cab with Walinga's proprietary HMI Smart Controller. Staying in the cab enhances biosecurity.
Walinga offers a full complement of graphic options too. Choose from cut vinyl, partial wraps, or painted finishes to fly your brand's message.

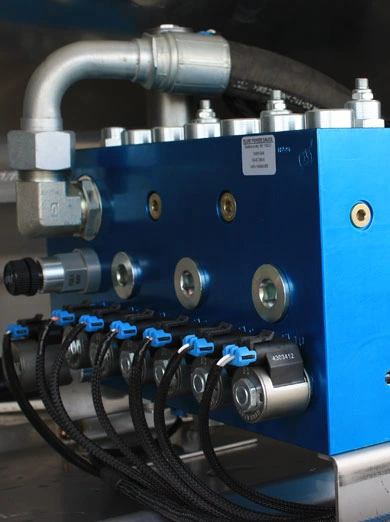

Not all hydraulic lines are created equal. Braided stainless lines combined with premium hydraulic controls ensure precise and optimal energy transfer.

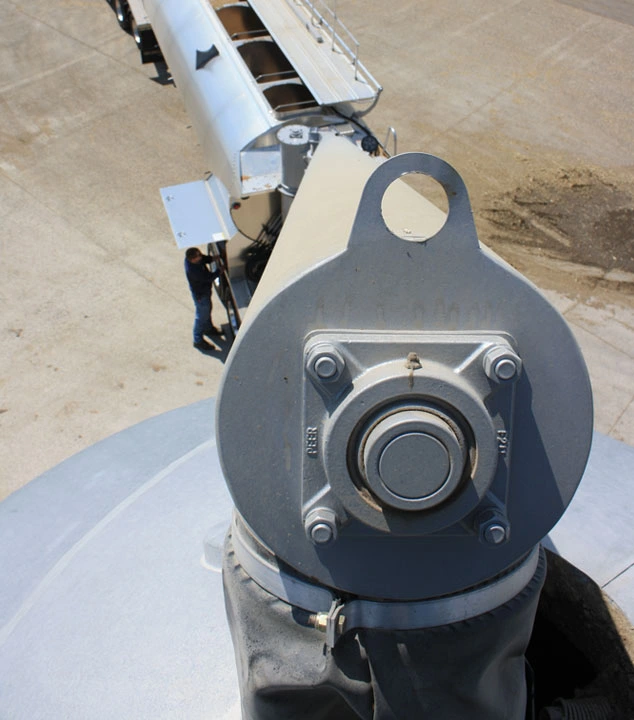

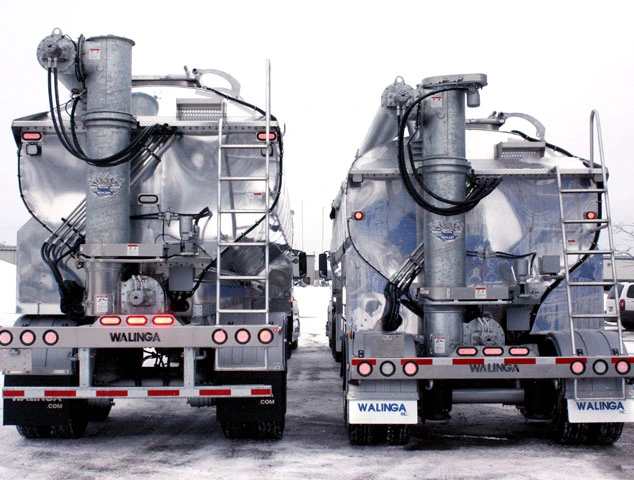

Fertilizer auger discharge systems. Manufacturers of a full range of familiar discharge systems including Walinga's legendary Pneumatic Conveying Systems through Paddle Discharge Systems, the properties of bulk fertilizer are best suited to Walinga's Auger Discharge System. Auger systems are available in different diameter configurations, with varied options for boom lengths. A Walinga HOAG Unit (High Output Auger) matched with Walinga's ultra tough, Ultra-Lite Aluminum construction and industry-leading low center of gravity Low-Pro chassis produces a trailer that's easy on fuel, big on durability and safety, while delivering maximum transfer speeds.
See More

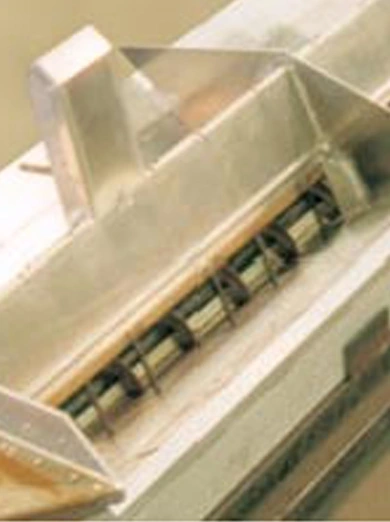

The Walinga design employs a 9in. (23cm) diameter trough auger with helicoid flighting on a 2 1/2 in (63mm) diameter shaft. Direct drive by a heavy duty, spring mounted high torque hydraulic motor incorporates automatic surge overload protection that controls the speed of the discharge augers. The design includes a heavy duty thrust bearing on the drive end and hanger bearing at the discharge end. A plastic (UHMW) liner in the auger trough is supplied to provide a tighter fit between auger and trough as well as prolonged life of trough.
Walinga stands behind their product. ALL Walinga chassis are protected by an ALL INCLUSIVE Structural Warranty. That's right, ALL INCLUSIVE.
Walinga supplies standard or custom components that fit & perform exactly as intended. If you don't see what you need, our engineers can help.
