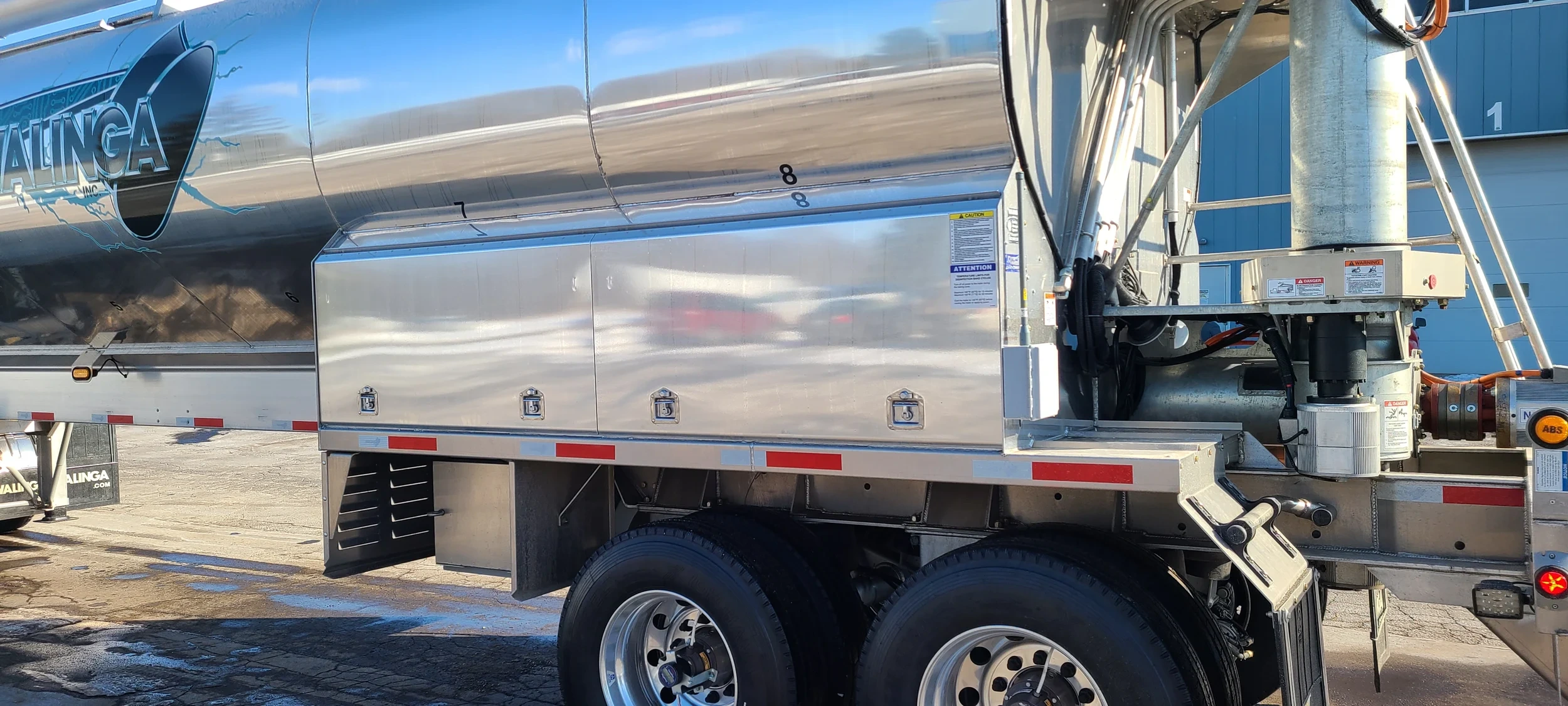

ete-evolution.name photo

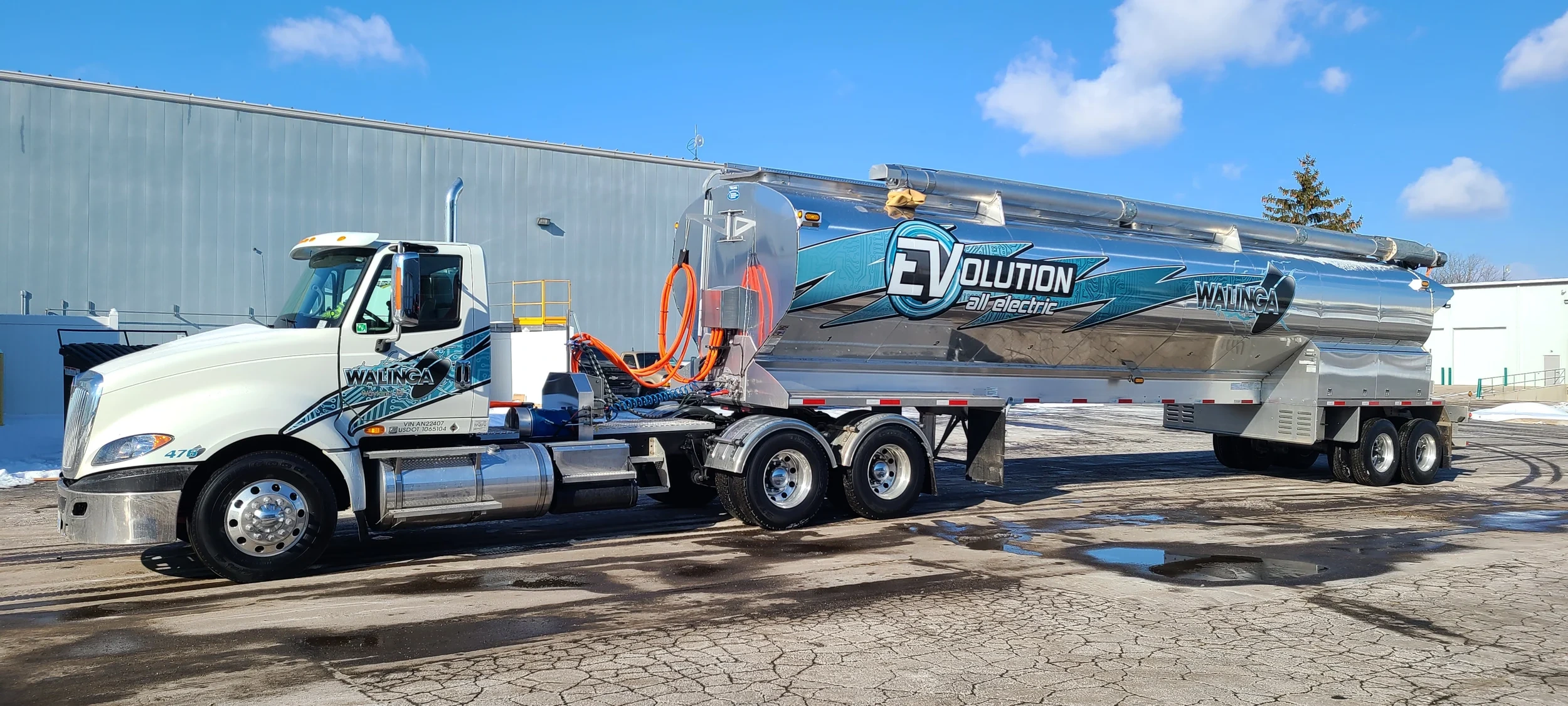

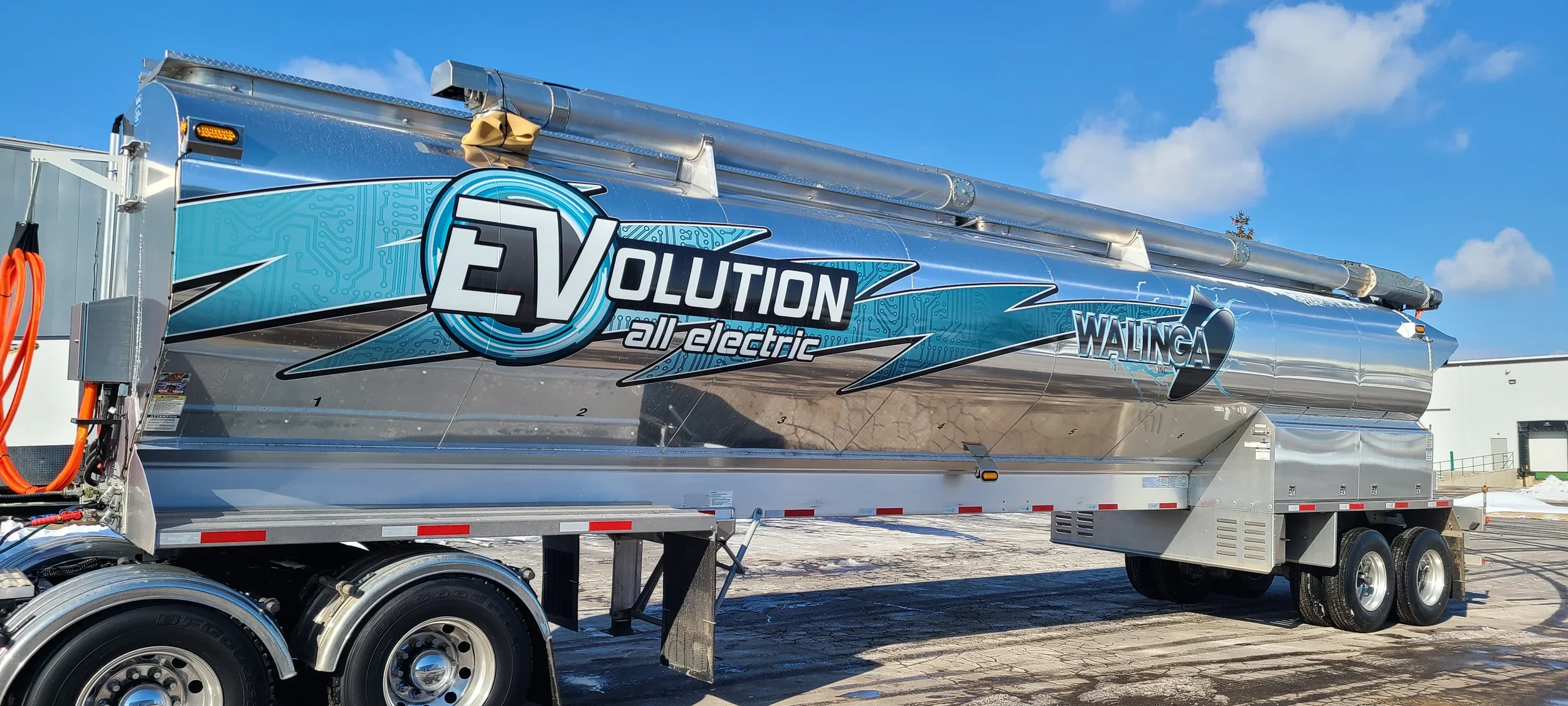

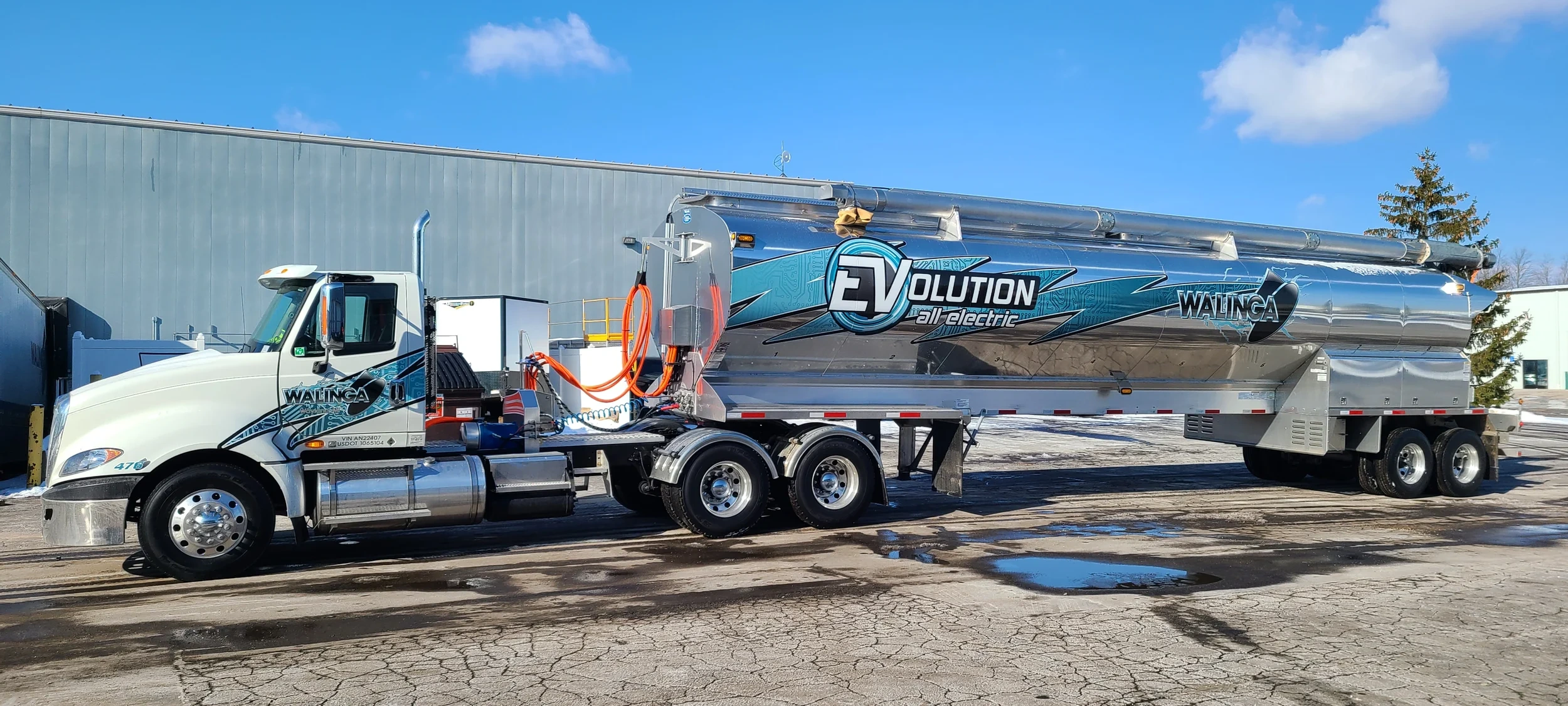

Evolution

Walingas' EVolution trailer features all electric drives. No more hydraulic heat management issues, no more spent caustic hydraulic fluids. No more hydraulic oil spills. PTO's easily spin a generator that maintains trailer mounted Lithium Ion batteries. Batteries drive high efficiency electric motors producing immediate torque with infinitely adjustable speed. A significant opportunity for real-time performance monitoring and adjustments. Deliver feed more efficiently than ever before!

Tailored. Reliable. Supported.

Specified to your needs, engineered for maximum uptime, and backed by unrivaled support.

Features

See why Walinga EVolution feed trailers go above and beyond to provide you with a trailer that is durable, efficient, and easy to maintain.

See More
EVOlution All Alumin WXtraLite image

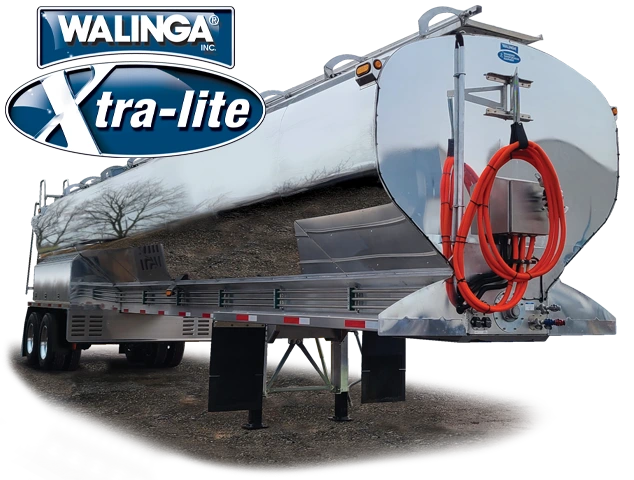

All Aluminum Construction

Available on most Walinga builds, those focused on maximum performance and fuel savings opt for the EVolution's high performance technology paired with the all aluminum construction of Walinga's Xtra-Lite trailers. Extremely durable and light weight aluminum construction. The only trailer available with a 100% Extruded Base, engineered to incorporate strength where strength is needed.

Extruded Comp Lg image

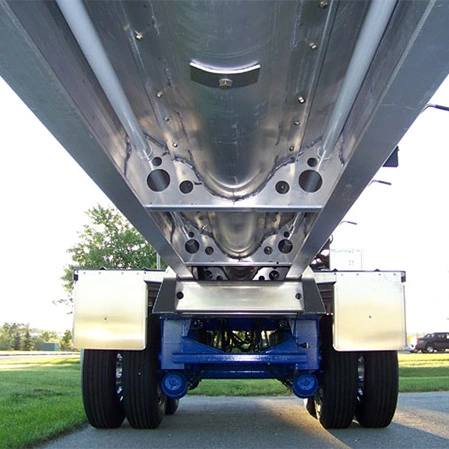

Extruded Components

One piece extruded components offer added strength as well as added peace of mind. Allowing for "Frame Flex" without compromising rigidity of the unit.

EVOlution Railing image

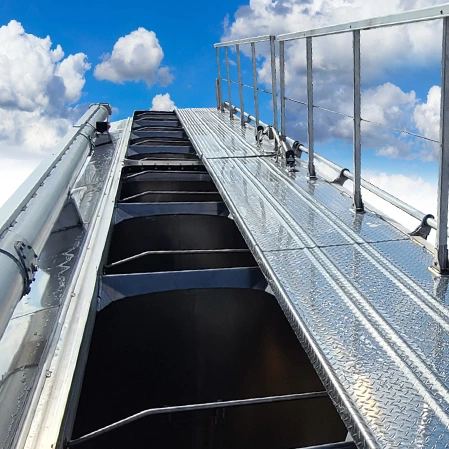

Electric Railings

Aluminum Expanded Metal walkways offer easy access to entire top side of the trailer. Each section of walkway is powered by individual high torque electric motors. Anyone accustomed to hydraulically driven catwalk railings inevitably makes a comment on the electric drives speed and precision.

EVOlution COntrols Cabinet image

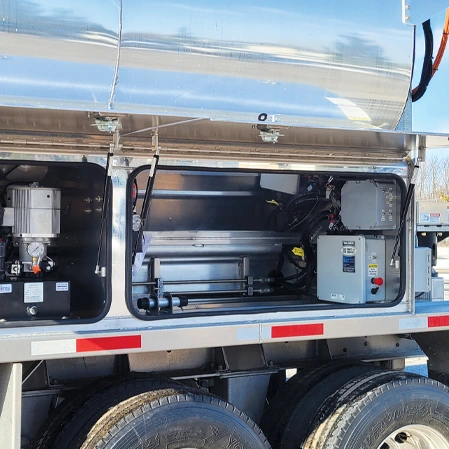

Tidy Controls Cabinet

Electronic controls provide clean, precise measurement, feedback and control of all drive functions. No more hydraulic maintenance, and room to spare.

EVOlution PTO GENERATOR image

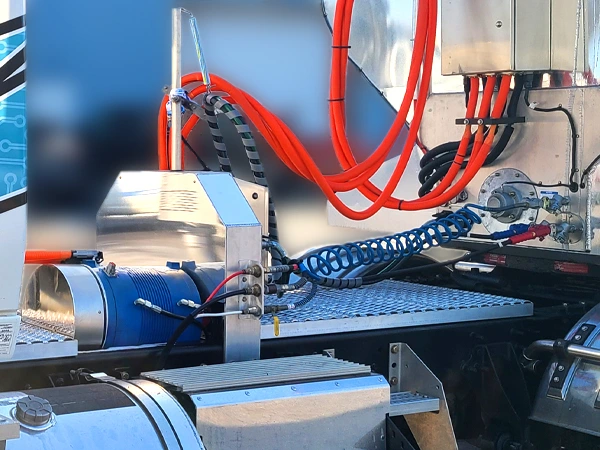

No More Tractor Hydraulics!

That's right, gone are all the maintenance issues associated with hydraulics systems. No more heat management, no more caustic waste oil. Tractor PTO easily spins a generator that keeps the trailers lithium battery bank fully charged. High torque electric motors drive augers, open and close gates, lift and lower railings, articulate the boom and everything else. Precision power application that when compared to hydraulic systems is virtually maintenance free.

EVOlution Heavybearings image

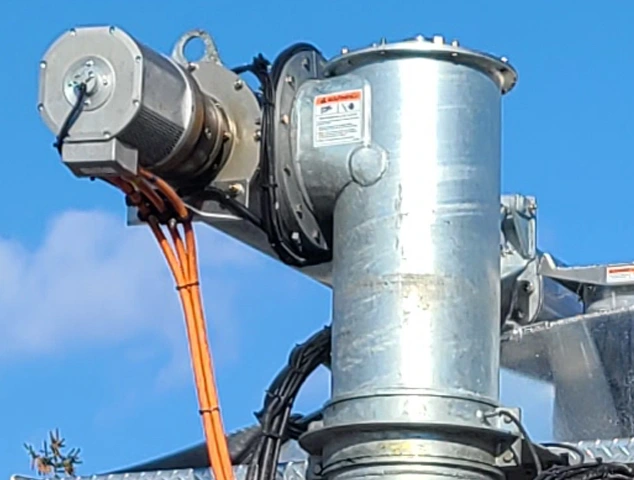

Heavy Duty Bearings

Nothing new here, at Walinga we ensure our trailers are built to last. All Walinga augers are supported with heavy duty bearings that are time tested to perform day in day out, 365 days of the year!

EVOlution GearDrive image

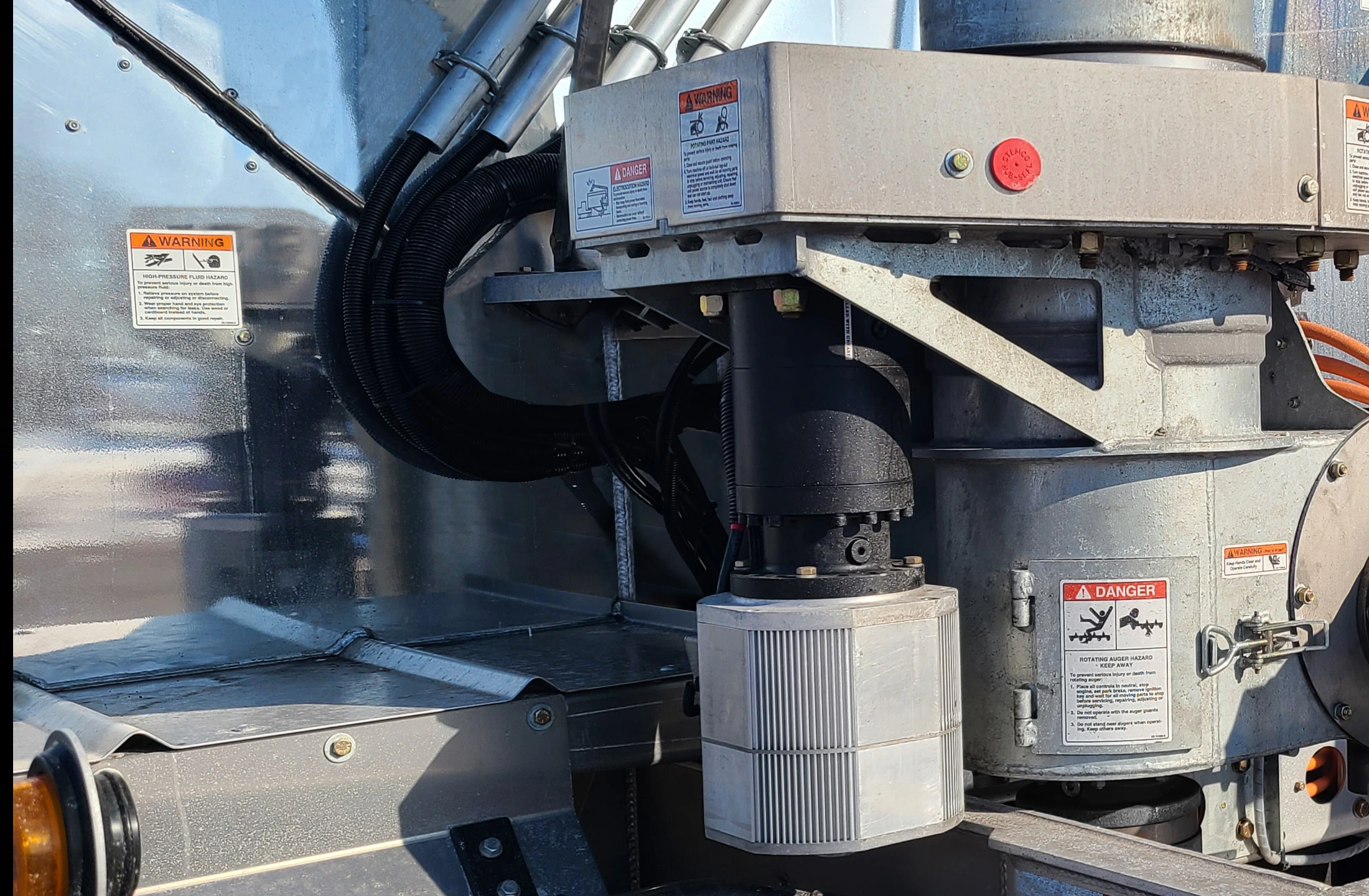

Gear-Driven Boom Rotation

Electric rotation of the boom utilizes direct drive gearing.

WALINGA EVolution Banner Eliminate Hydraulics image

How it works

Truck PTO spins the truck mounted generator which maintains the charge within the lithium battery packs located ahead of rear trailer axles. The batteries drive high torque, field tested, proven reliable electric motors. Electric drives power augers, railings, gates, roof lids, everything.

See More
WALINGA HOW IT WORKS EVolution Banner image
EVOlution HeavyDutyElectricals image

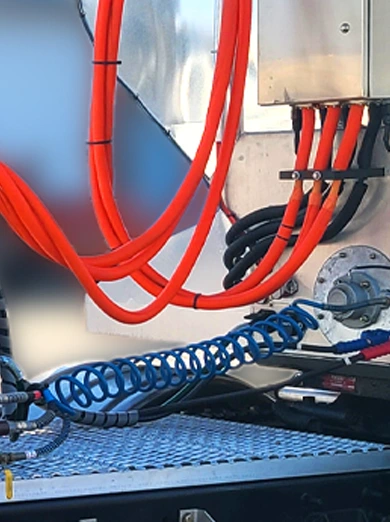

Heavy Duty Electricals

Only the most efficient and durable electrical cabling and wiring harnesses are utilized, delivering 100% performance for the lifetime of the trailer.

Feature Dotlighting image

D.O.T. Lighting

D.O.T. lighting ensures everyone around can see you in all conditions. Near limitless optional lighting packages are also available.

EVOlution LithiumBattery Bank image

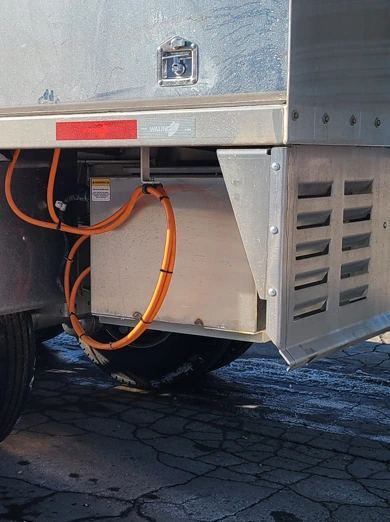

Lithium Battery Bank

Low slung Lithium battery bank charge is maintained by the tractor mounted generator. Walinga trailers are productive for years, with that in mind the battery bay is designed to accept evolving battery technologies.

EVOlution Generator PTOtransfercase image

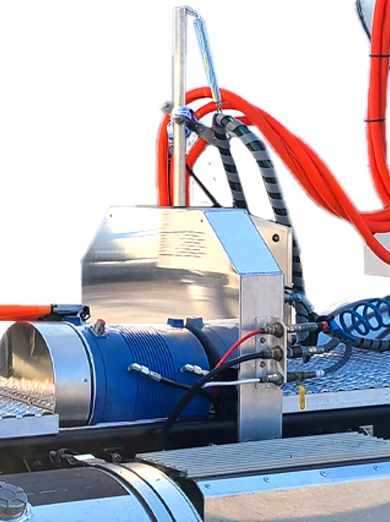

PTO mounted Generator

The PTO mounted generator maintains the charge for the lithium battery bank, powering electric drives across the trailer.

Options - HOAG vs Xpress

For many years the Walinga line of Bulk Feed Delivery Units have been the equipment of choice. These units allow the operator maximum load capabilities, minimum weight to strength ratios and of course our guarantee of low maintenance requirements. The all electric EVolution trailer is currently available as an Auger ONLY unit. Specify either the 9-12-9 Xpress Unload Auger (faster than a standard 9-12-9 auger) or the powerful 12-15-12 High Output Auger (HOAG). Both combinations powered by field tested durable high torque electric motors. Both utilize heavy duty hanger bearings at the discharge end and heavy duty thrust bearings on the drive ends. The Xpress unit employs a 9in. (23cm) diameter trough auger with helicoid flighting on a 2 1/2 in (63mm) diameter shaft. The HOAG employs a 12in. (30.4cm) diameter trough auger. Both are direct drive by heavy duty high torque electric motors incorporating automatic surge overload protection to control the speed of the discharge augers. A plastic (UHMW) liner in both auger troughs is supplied to provide a tighter fit between auger and trough while prolonging trough life.

See More
EVolution HOAG AugerDischarge Placement Logo image

12-15-12 inch High Output Auger Discharge

Nicknamed 'The HOAG'. Currently the most powerful, highest volume, maximum transfer speed auger combination Walinga manufactures. Unload capacities up to 7,000 lbs / min. utilizing a 12" floor auger, 15" vertical auger, and 12" boom auger. The design includes a heavy duty thrust bearing on the drive end and hanger bearing at the discharge end. A plastic (UHMW) liner in the auger trough is supplied to provide a tighter fit between auger and trough while prolonging trough life.

EVolution Xpress AugerDischarge image

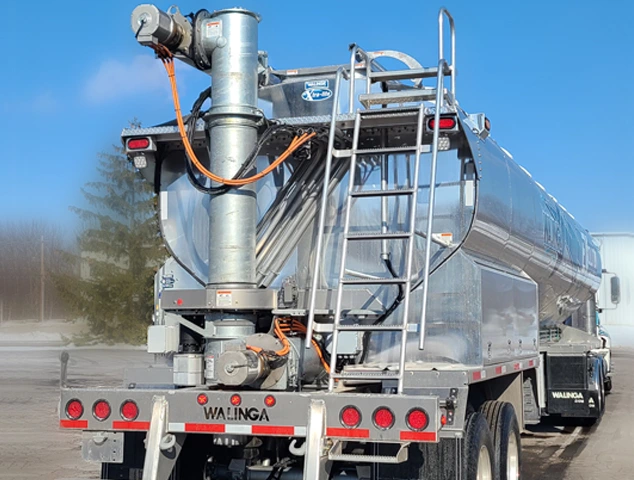

9-12-9 inch Xpress Auger Discharge

Walinga's intermediate speed auger, faster than standard auger options and shy of the High Output Auger (The HOAG), is perfect for performance minded clients that do not require the absolute ultimate in volume transfer that the HOAG delivers. The Xpress auger unloads capacities up to 5,000 lbs / min. utilizing its 9" floor auger, 12" vertical auger and 9" boom auger. The design includes a heavy duty thrust bearing on the drive end and hanger bearing at the discharge end. A plastic (UHMW) liner in the auger trough is supplied to provide a tighter fit between auger and trough while prolonging trough life.

EVOlution Both Remotes image

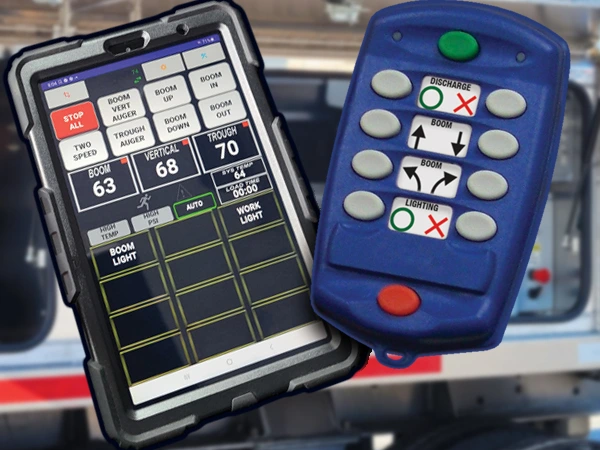

Remote Controlled Boom

Remotely control various functions from the comfort of the cab or anywhere else nearby. Choose the robust push button OMNIX remote to manage START, STOP and four other functions or utilize our tough Android tablet to manage dozens of functions. Both units functions are fully customizable and are typically delivered fully programmed.

RollTarpFender image

Roll Tarp Fender

Customers can customize units with any combination of roll tarp storage or aluminum cabinetry.

GalChassis20170628 121228 image

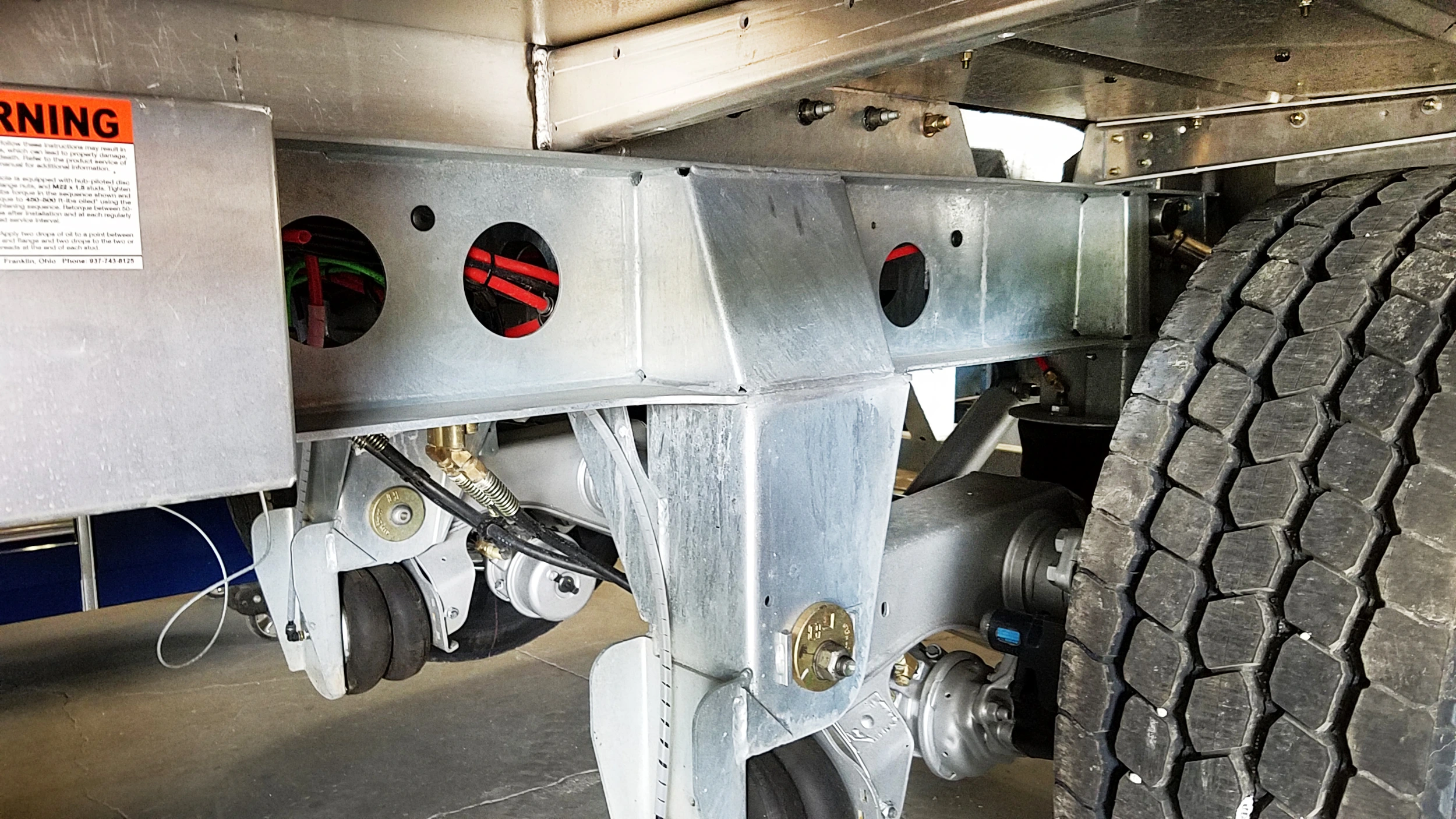

Galvanized Chassis

Galvanization involves coating the chassis with zinc to help protect it from corrosion. The process increases durability against salts and other acids, long term strength and a clean aesthetic all lead to less maintenance and a better resale value.

AllBulk Option004 image

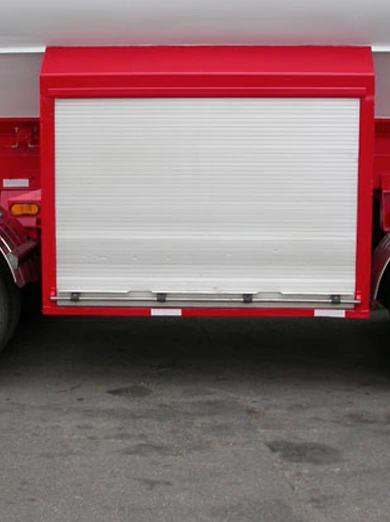

Aluminum Tool Box

Great for transporting feed bags, grain shoots, brooms etc.

AllBulk Option005 image

Custom LED Lighting Kits

The possibilities are pretty much limitless.

EVOlution AllBulk Option006Aluminum Railing image

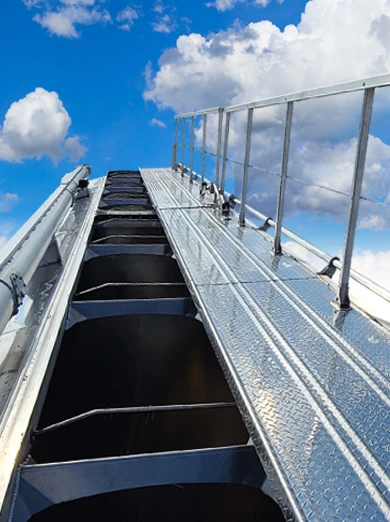

Aluminum Catwalks

Aluminum catwalks and ladders offer the driver safe and easy access to the top side of the unit.

Front Unload SS image

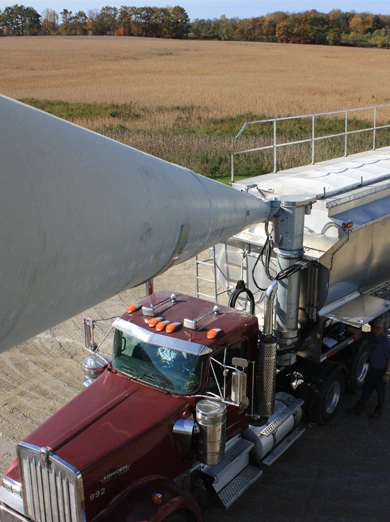

Front Unload

AllBulk Option008 image

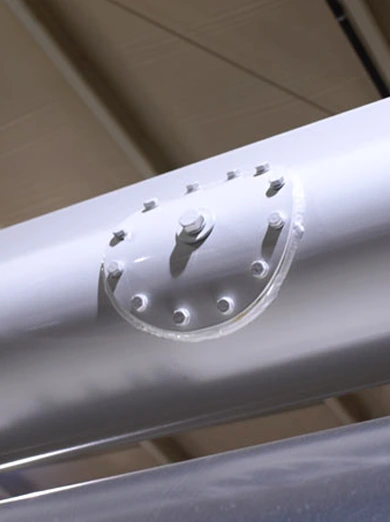

Heavy Duty Hanger Bearings

Heavy duty hanger bearings ensure that unloading runs smoothly load after load.

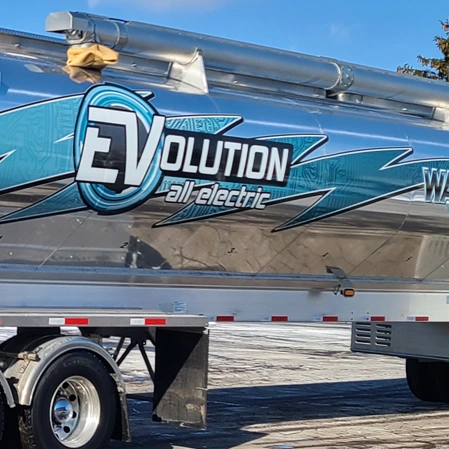

Electric Drive Gates image

Gates operate electrically.

Powerful stepper motors control gates from inside the unit, leaving a streamlined exterior.

BoomOutofSaddleLight image

Boom Out of Saddle Light

Drivers are alerted when the boom is out of saddle. Additionally, boom proximity sensors audibly warn of high-voltage lines and will halt boom movement to prevent contact.

EVOlution Roll Stability image

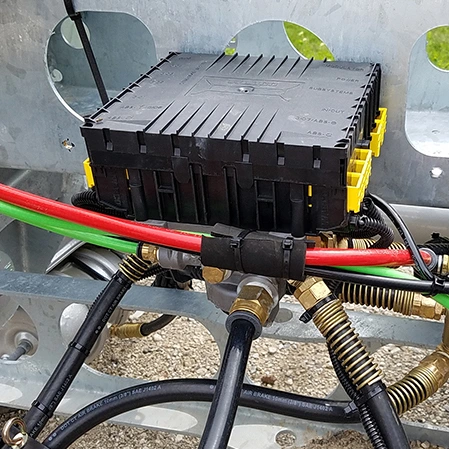

SmartTrac Roll Stabilizer

This controller, known as SmartTrac by MeritorWabco, monitors the vehicle's rollover threshold and activates to slow the vehicle when the threshold is exceeded. After the conditions cease, normal vehicle operation resumes.

WALINGA FEEDLOK 2023 Banner image
PAINT CUSTOM SWATCH image

Polished, Painted or Wrapped...

Maintain or upgrade your fleets branding with Walinga. Start with an unpainted or polished canvas, customers supply their own graphic standards to be applied as painted, cut vinyl or full or partial wrap. Looking to reinvent your fleets branding, we can help with that too. Walinga utilizes UV stabilized PPG automotive paint finishes and wrap materials. All paint and vinyl products are sourced from industry leaders such as PPG and 3M and are applied by trained professionals. Walinga does not provide any warranty beyond those of the products manufacturer.

Auger Only Evolution Discharge Systems

Walinga Inc continues to offer a number of different options when it comes to unloading feed and grain from our line of non-electric hydraulic units. Non-Electric customers can choose from auger unloading, air unloading, paddle chains or drag chains. The EVolution trailer technology has launched specifically as an auger only discharge system. All typical trailer hydraulic systems are replaced with state of the art electric drives, this includes the augers, gates, railings, roof lids and everything. All powered from the trailers battery banks which have their charge maintained by a PTO connected generator.

See More
AugerDischarge Nov17 image

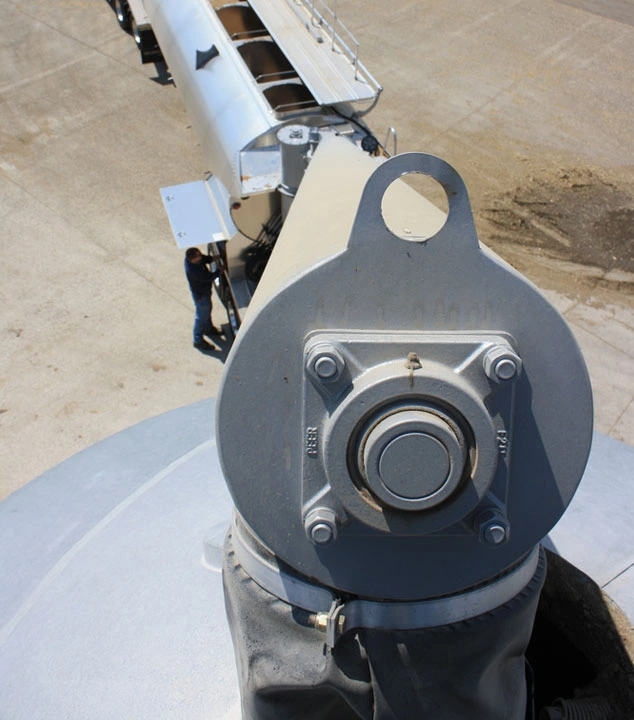

Auger Discharge

The Walinga Xpress auger combination employs a 9in. (23cm) diameter trough auger with helicoid flighting on a 2 1/2 in (63mm) diameter shaft. The Walinga HOAG (High Output Auger) utilizes the larger 12in. trough auger with helicoid flighting on a X.Xin. (XXmm) diameter shaft. Both have direct drive, heavy duty, high torque electric motor controlling the speed of the discharge augers. The design includes a heavy duty thrust bearing on the drive end and hanger bearing at the discharge end. A plastic (UHMW) liner in the auger trough is supplied to provide a tighter fit between auger and trough while prolonging trough life.

Transfer Systems - Only Auger Equipped... for now.

The all electric EVolution trailer is currently available as an Auger ONLY unit. Specify either the 9-12-9 Xpress Unload Auger (faster than a standard 9-12-9 auger) or the powerful 12-15-12 High Output Auger (HOAG). Both combinations powered by field tested durable high torque electric motors. It has already been asked and with continued customer support it is likely the manufacturing and testing of additional pneumatic transfer systems will begin. For now, Walinga Pneumatic Transfer and Reclamation Systems are options only available on standard non-electric units.

See More
AugerDischarge Nov17 image

Auger Discharge

The Walinga Xpress auger combination employs a 9in. (23cm) diameter trough auger with helicoid flighting on a 2 1/2 in (63mm) diameter shaft. The Walinga HOAG (High Output Auger) utilizes the larger 12in. trough auger with helicoid flighting on a X.Xin. (XXmm) diameter shaft. Both have direct drive, heavy duty, high torque electric motor controlling the speed of the discharge augers. The design includes a heavy duty thrust bearing on the drive end and hanger bearing at the discharge end. A plastic (UHMW) liner in the auger trough is supplied to provide a tighter fit between auger and trough while prolonging trough life.

Warranty image

Walinga 5 Year Warranty

Walinga stands behind their product. ALL Walinga chassis are protected by an ALL INCLUSIVE Structural Warranty. That's right, ALL INCLUSIVE.

Iso image

Specialty Parts are a Snap

Walinga supplies standard or custom components that fit & perform exactly as intended. If you don't see what you need, our engineers can help.
