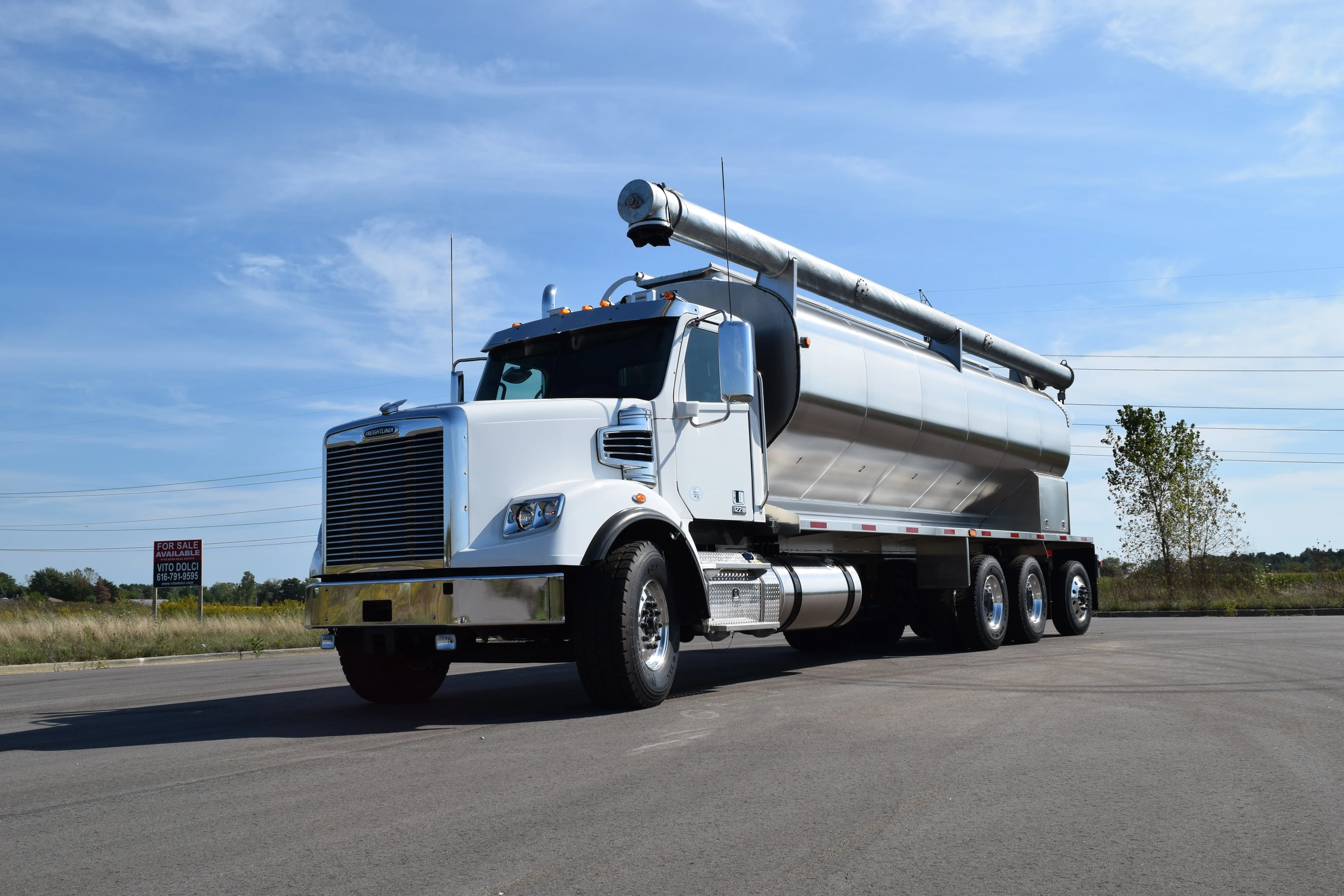

Bulk Feed Bodies

For many years the Walinga line of all Bulk Feed Delivery Units have been the equipment of choice. These units allow the operator maximum load capabilities, minimum weight to strength ratio, and our guarantee of low maintenance requirements.

Tailored. Reliable. Supported.

Specified to your needs, engineered for maximum uptime, and backed by unrivaled support.

Features

See why Walinga bulk feed trailers go above and beyond to provide you with a trailer that is durable, efficient, and easy to maintain.

See More
Aluminum image

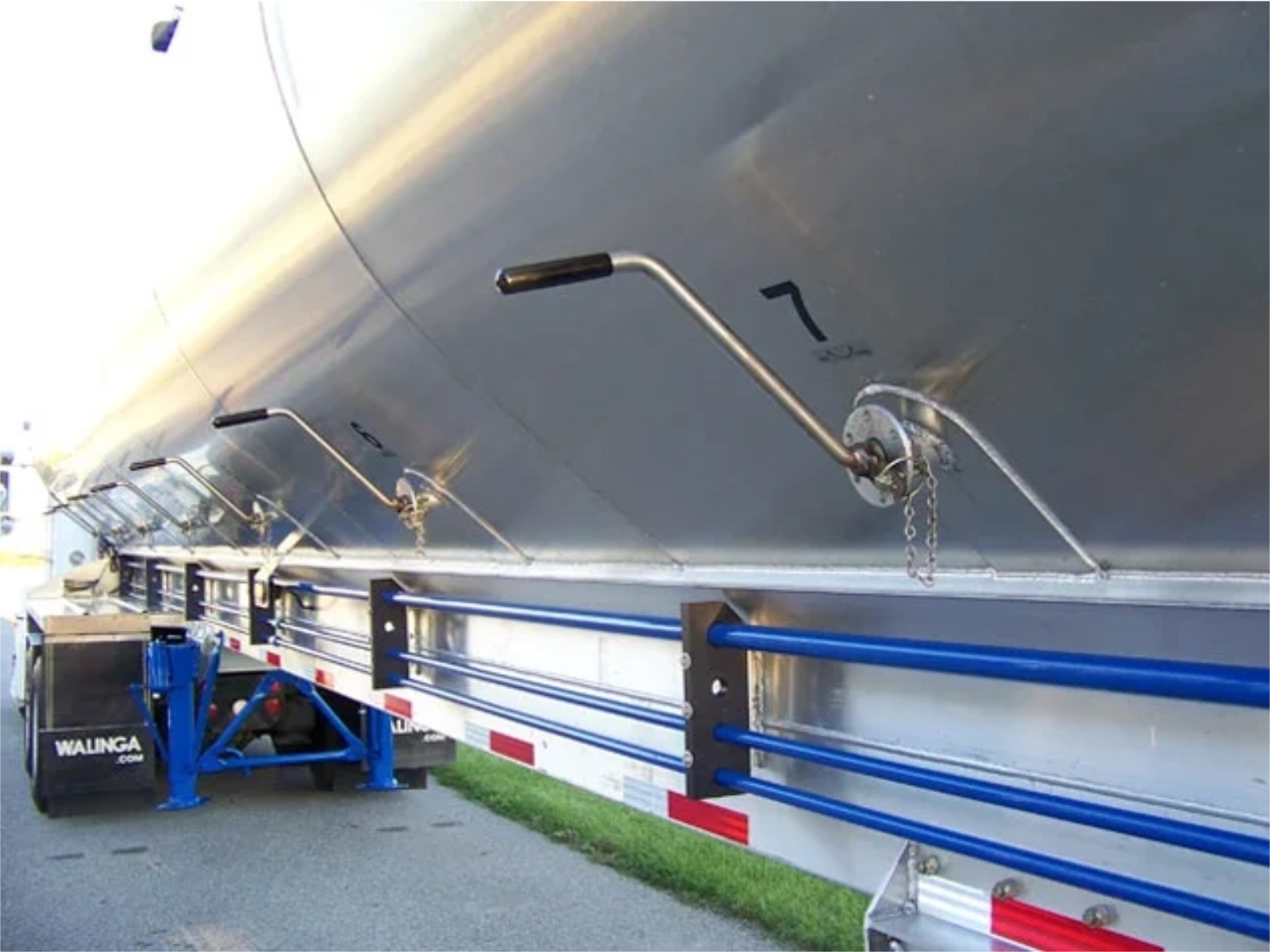

All Aluminum Construction

Extremely durable and lightweight aluminum construction. The only Trailer available with 100% Extruded Base. Extruded Base allows engineering to incorporate strength where strength is needed. This is something formed bases can not give you.

Extruded image

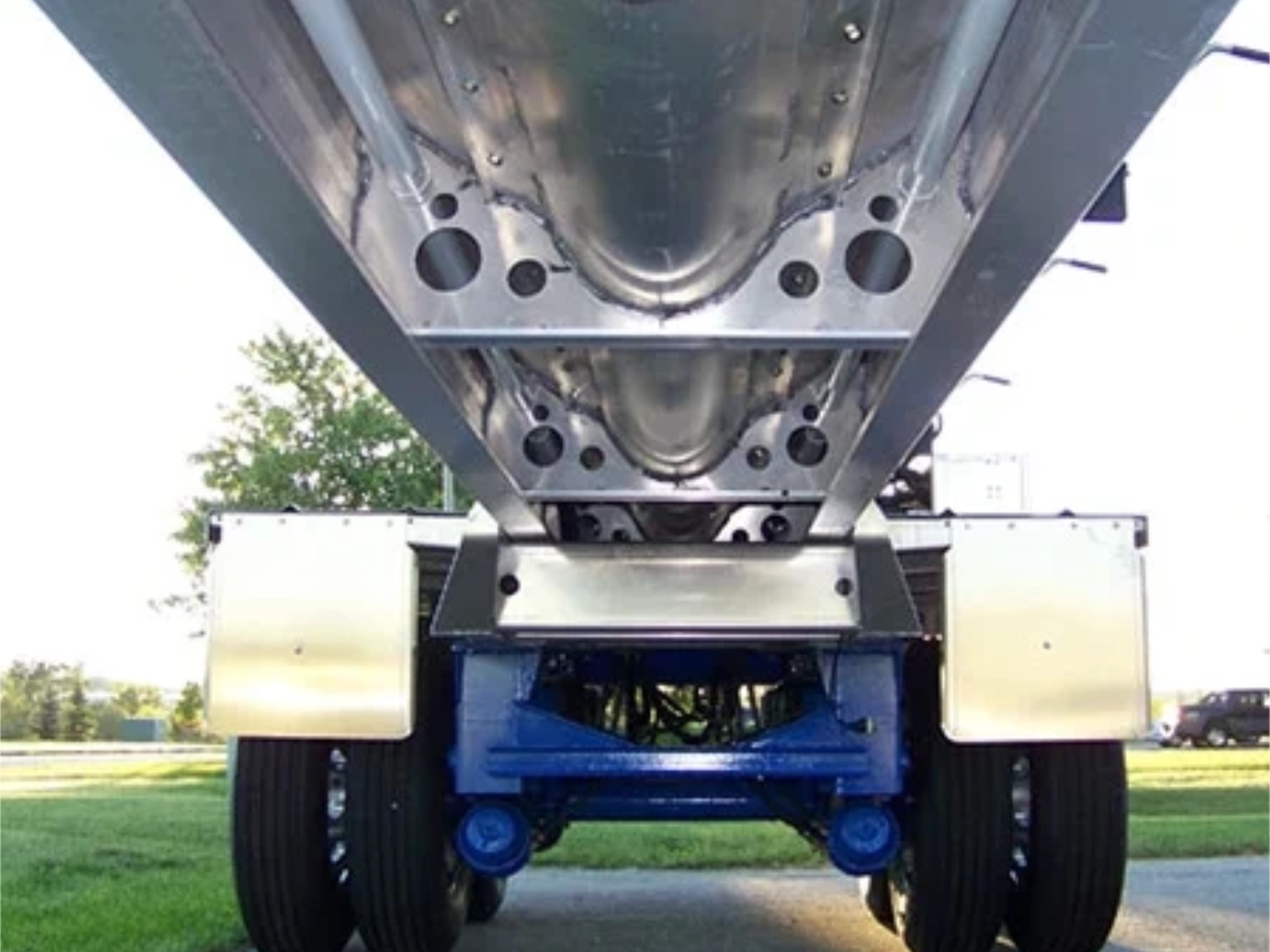

Extruded Components

One piece extruded components offer added strength as well as added peace of mind. Allowing for "Frame Flex" without compromising rigidity of the unit.

AlumWalkWay image

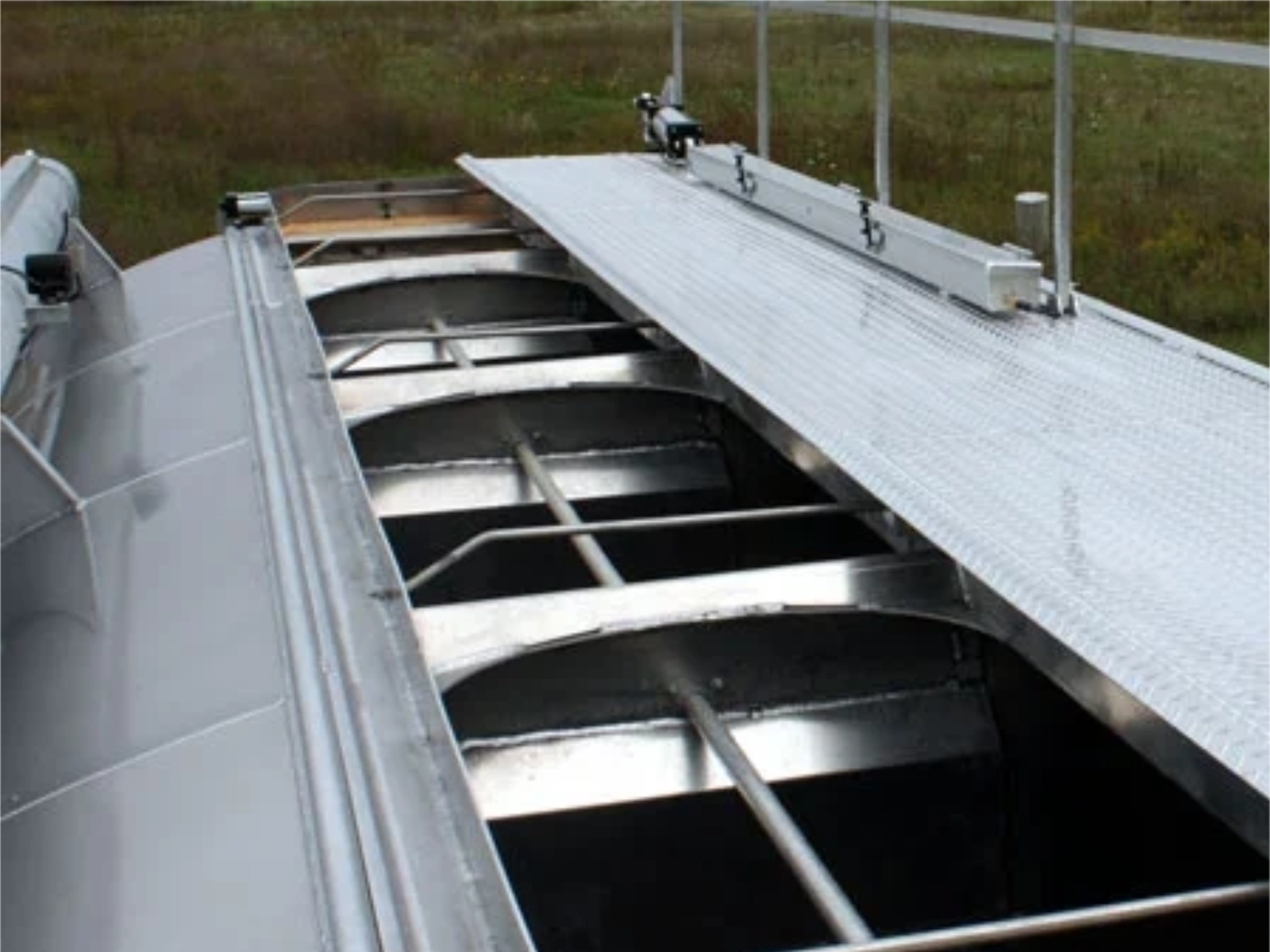

Aluminum Walkway

Aluminum Expanded Metal walkways offer easy access to entire top side of the trailer.

Hydraulic Controls image

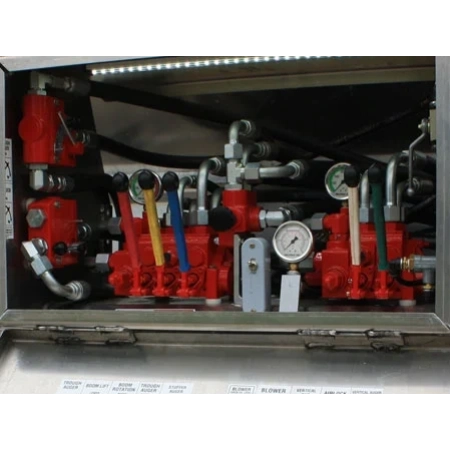

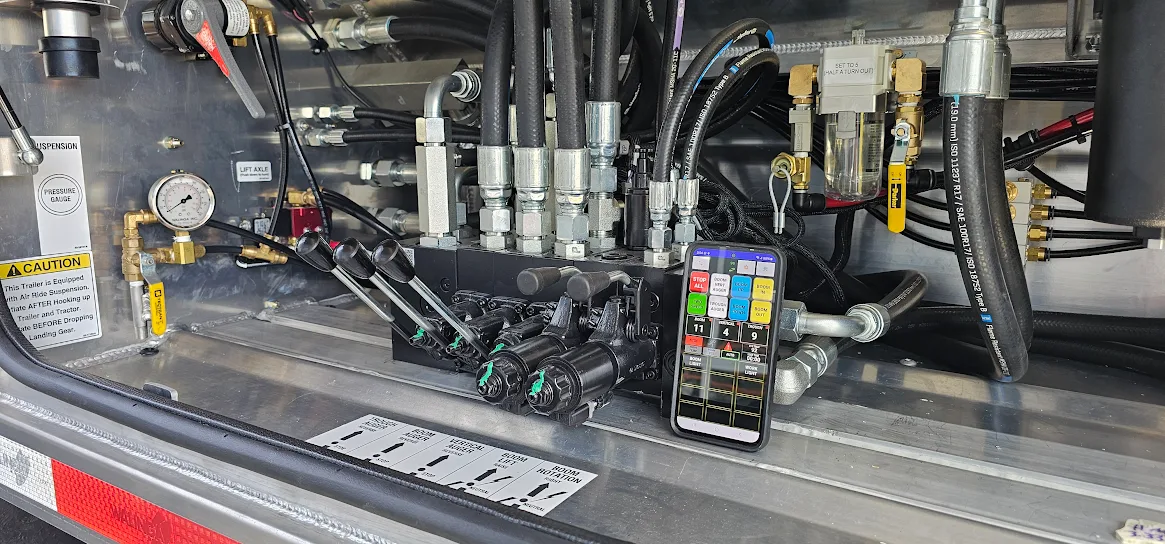

Hydraulic Controls

Walinga trailers feature V-20 hydraulic controls that are easily accessible as well as easy to understand and operate, using hydraulic fittings that promote good fluid flow efficiencies.

Heavybearings image

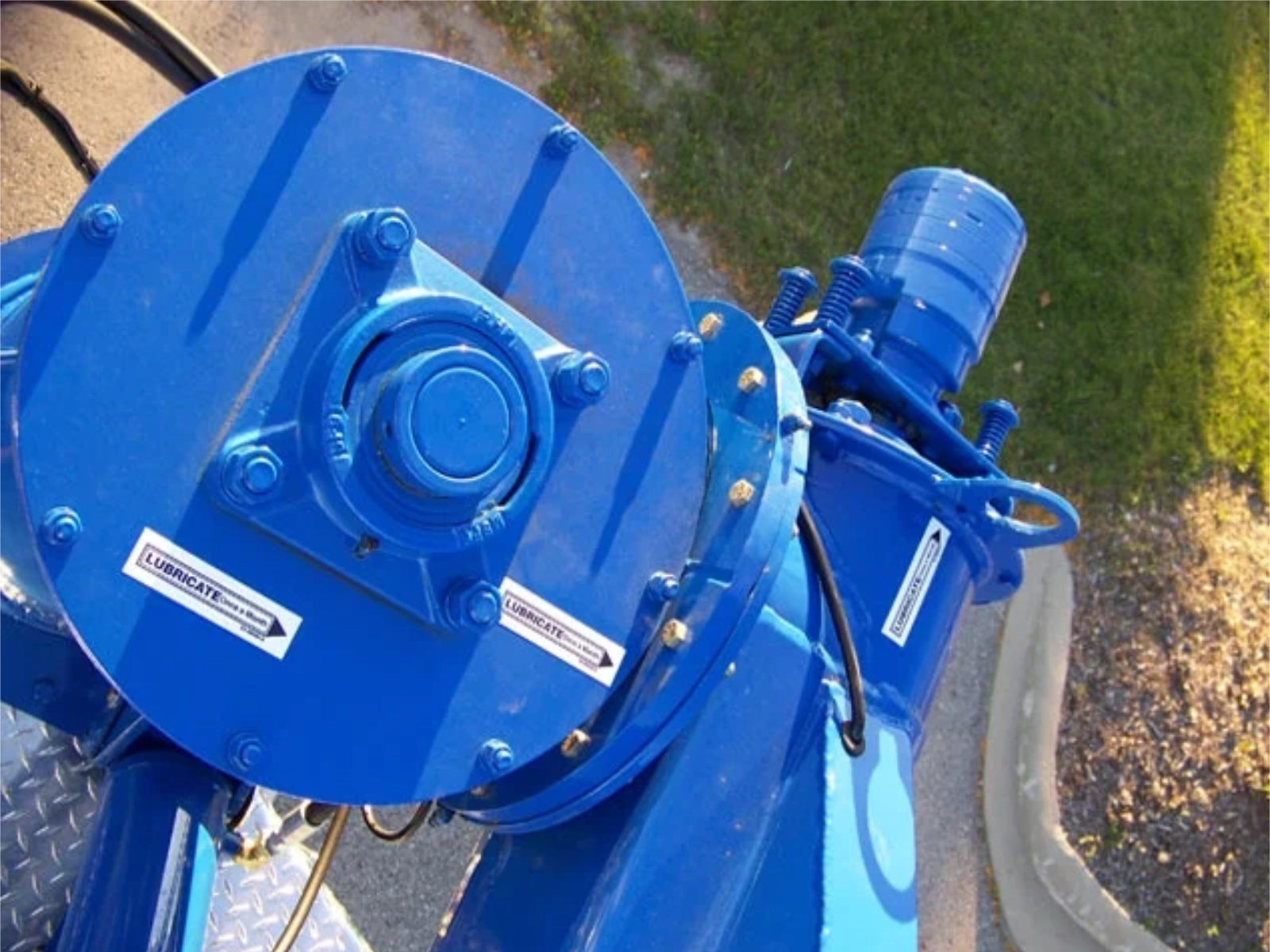

Heavy Duty Bearings

At Walinga we make sure our trailers are built to last. That's why we've taken the time to make sure even the little things are going to work well day in and day out.

GearDrive image

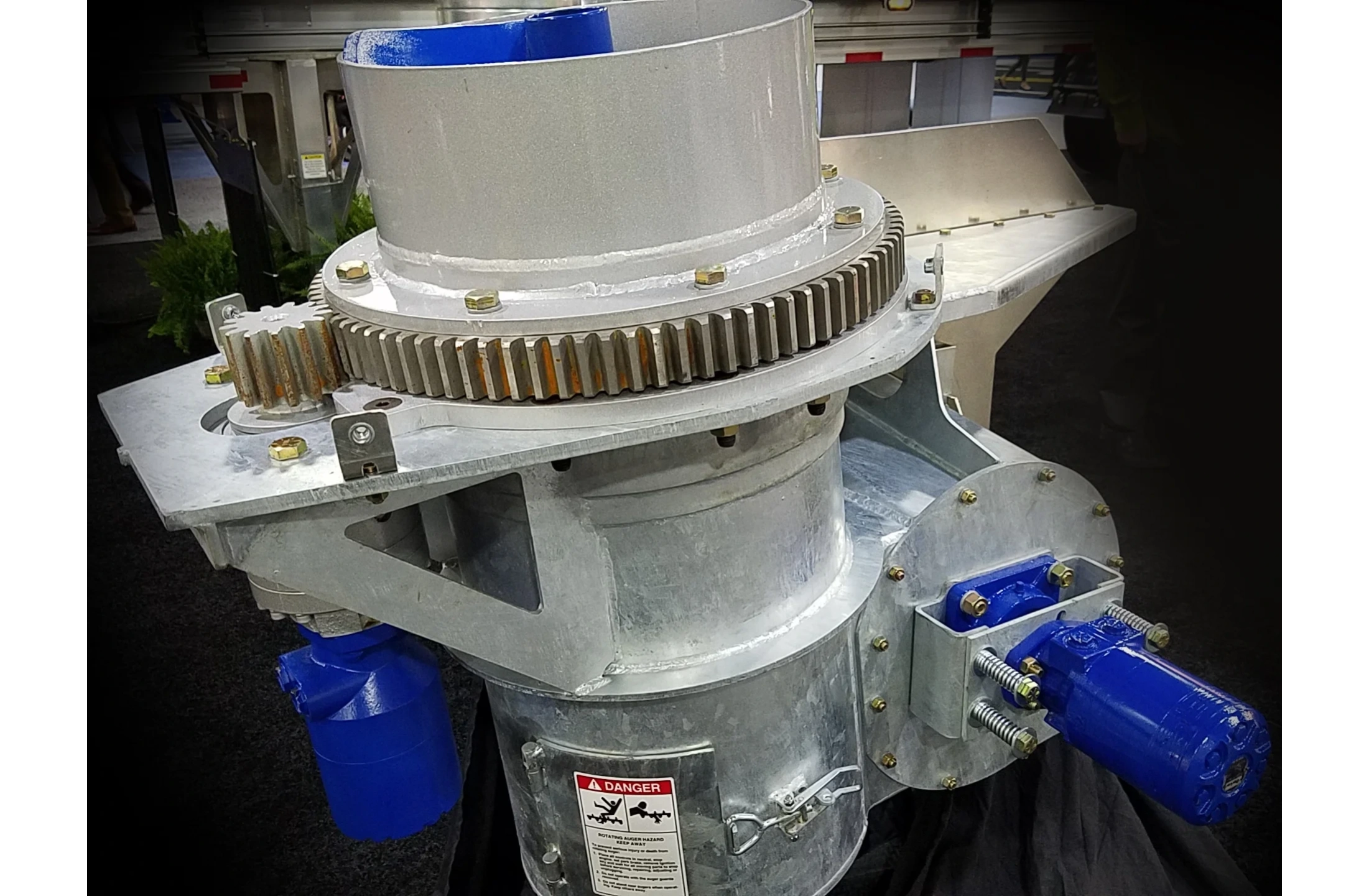

Gear-Driven Boom Rotation

The Walinga Smart-Flo™, a Variable Frequency Drive System, utilizes various sensors to monitor flow rate in real time. Motor speeds are constantly tuned to maximize transfer capacities while reducing energy costs and minimizing bulk damage.

HeavyDutySSTubing image

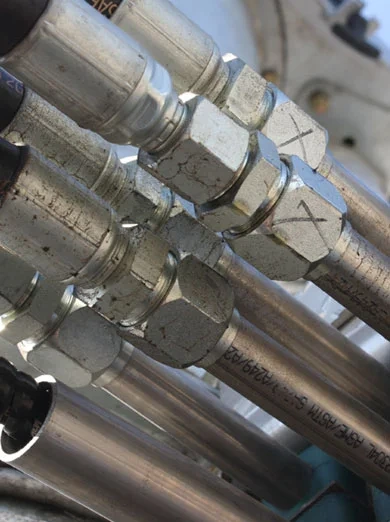

Heavy Duty Stainless Steel Hydraulic Lines

Heavy duty hydraulic tubing ensures the hydraulic system performs 100% and lasts the lifetime of the trailer.

Feature Dotlighting image

D.O.T. Lighting

D.O.T. lighting ensures everyone around you can see you in all conditions.

Feature Springmotors image

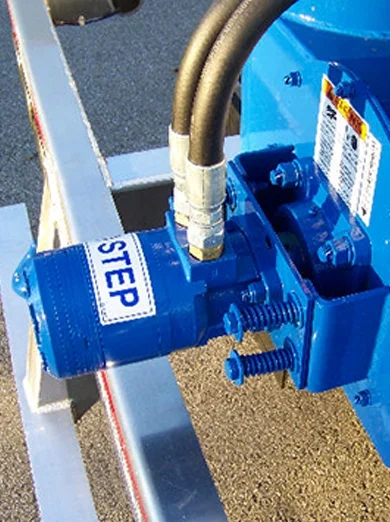

Spring Mounted Motors

Spring Mounted motors were developed to provide longer life of the key components. Coupled with our Unique Spline Inserts motors and bearings last longer and are easier to change out. A Walinga Exclusive!

PumpAndPTO image

Pump & PTO

Options

Walinga has many upgrades and accessories to tailor capacity, controls, and finishing details to your bulk feed trailer.

See More
AugerDischarge image

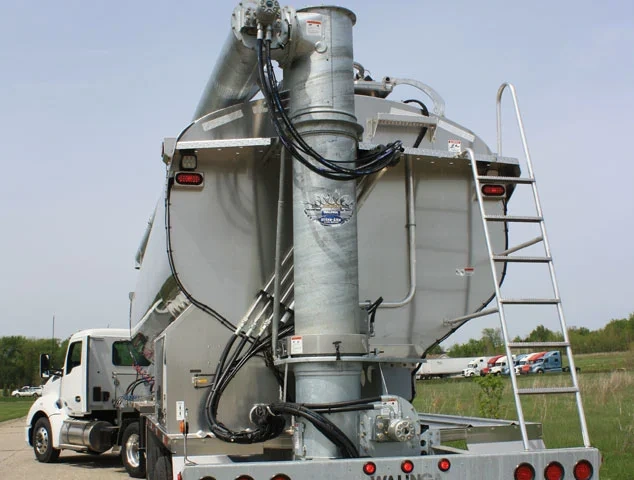

12-15-12 inch Auger Discharge

Unload capacities up to 7,000 lbs / min. 12" floor auger, 15" vertical auger, 12" boom auger.

LowPro image

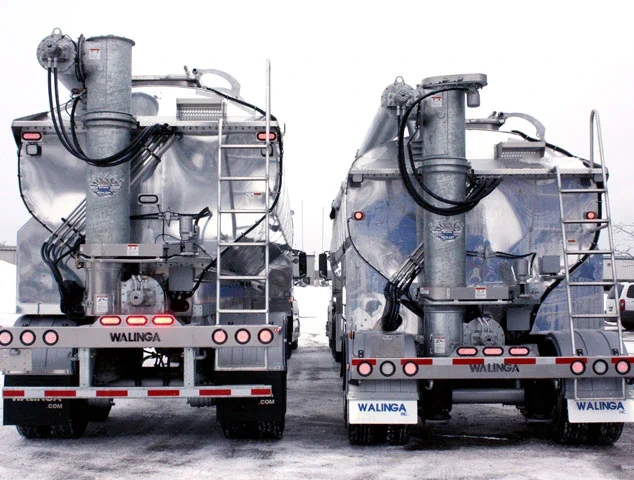

LowPro

Aerodynamic, Saves on Fuel, Includes Anti-Rollover, All Aluminum, Smart Bin

All Units Both Remotes image

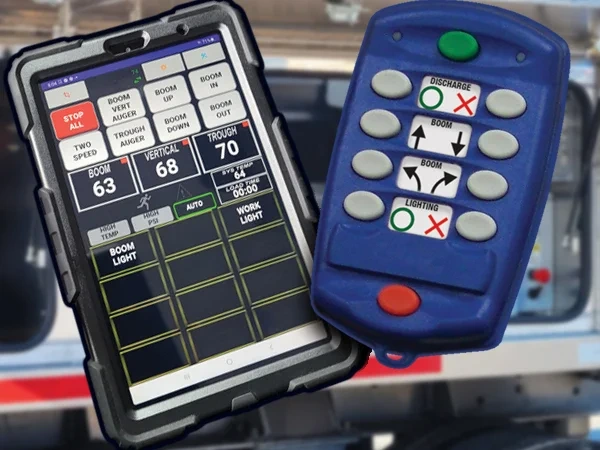

Remote Controlled Boom

Remotely control various functions from the comfort of the cab or anywhere else nearby. Choose the robust push button OMNIX remote to manage START, STOP and four other functions or utilize our tough Android tablet to manage dozens of functions. Both units functions are fully customizable and are typically delivered fully programmed.

AllBulk Option003 image

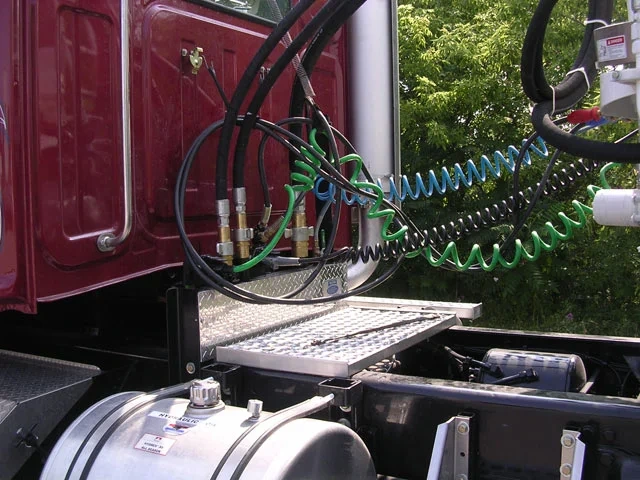

Tractor Hydraulic Package

Heavy Duty tractor wet kits are designed to keep your Walinga trailer running strong using only the best components.

RollTarpFender image

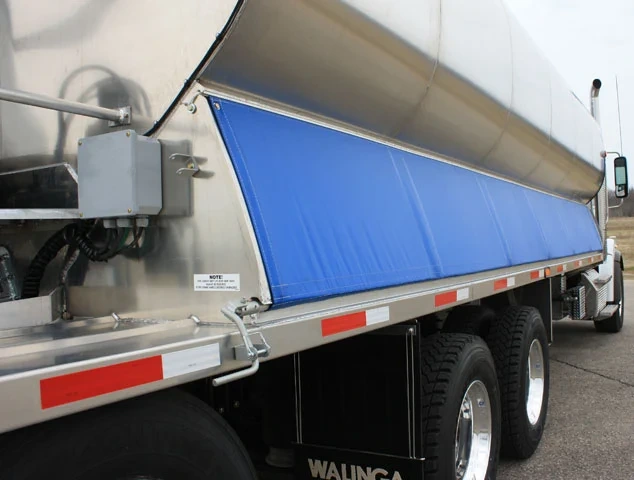

Roll Tarp Fender

GalChassis20170628 121228 image

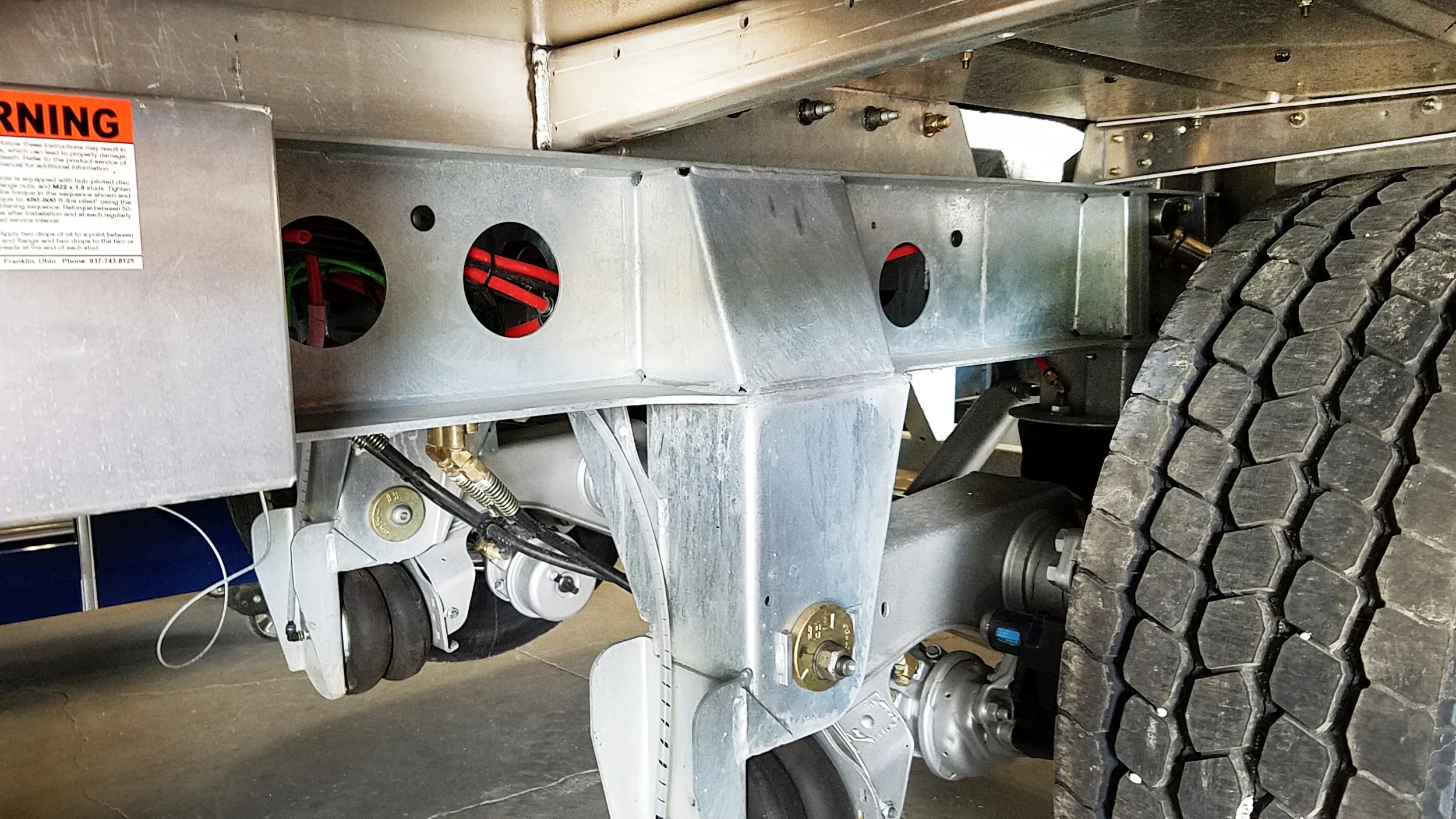

Galvanized Chassis

RollStability image

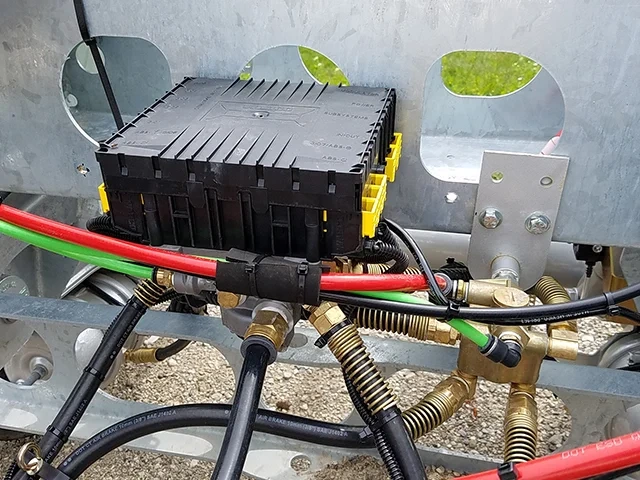

Roll Stability Controller

This controller, known as SmartTrac by MeritorWabco, monitors the vehicle’s rollover threshold and activates to slow the vehicle when the threshold is exceeded. After the conditions cease, normal vehicle operation resumes.

AllBulk Option004 image

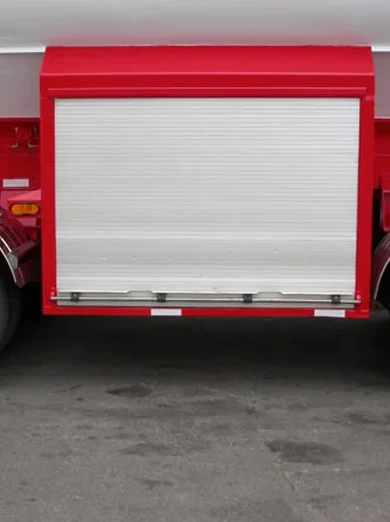

Aluminum Tool Box

Front Unload SS image

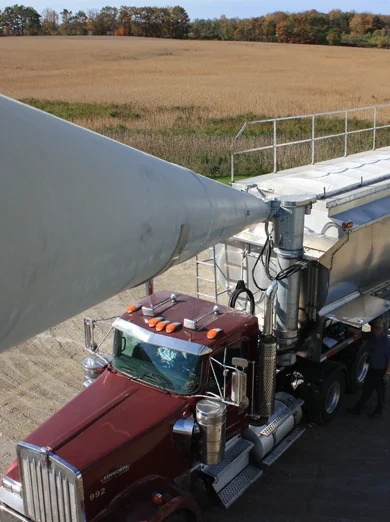

Front Unload

AllBulk Option005 image

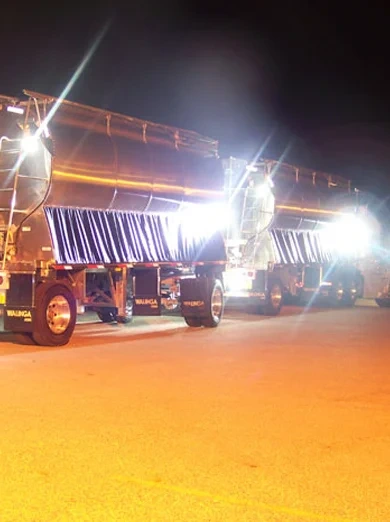

Custom LED Lighting Kits

MonoBlock image

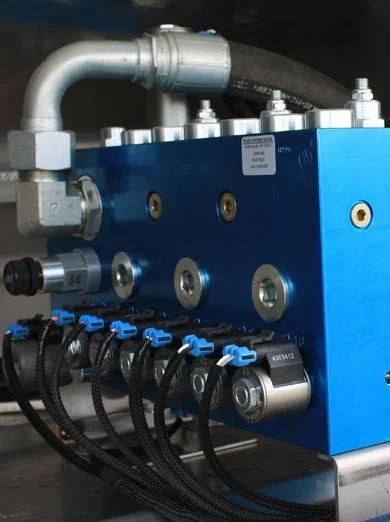

MonoBlock Hydraulic Controls

AllBulk Option006 image

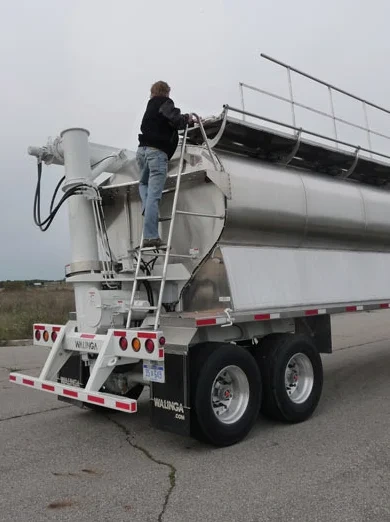

Aluminum Catwalks

HydraulicSuperCooler390x522 image

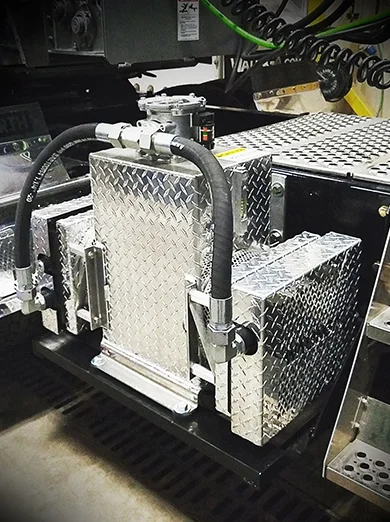

Hydraulic System Super Cooler

AllBulk Option008 image

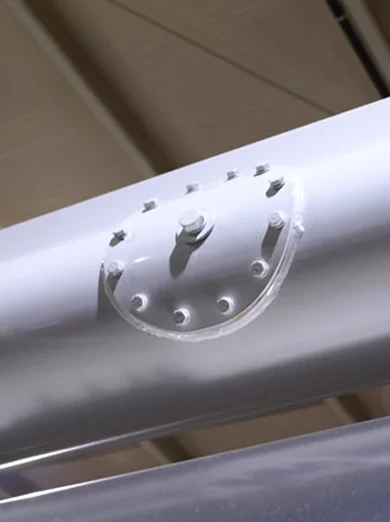

Heavy Duty Hanger Bearings

AirOperatedGates image

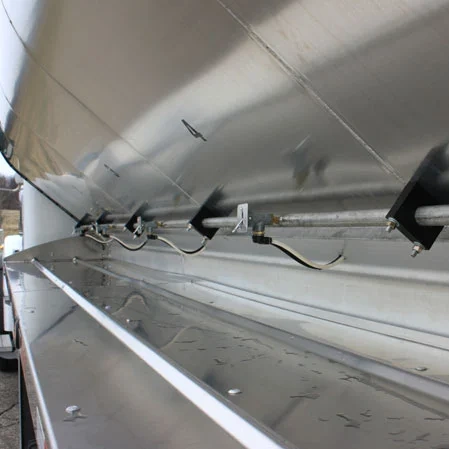

Air Operated Gates

BoomOutofSaddleLight image

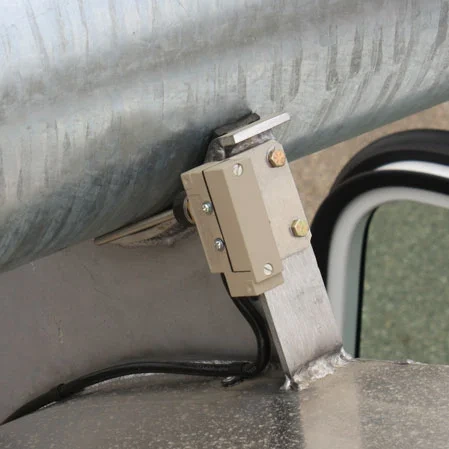

Boom Out of Saddle Light

AirOperatedHandrails image

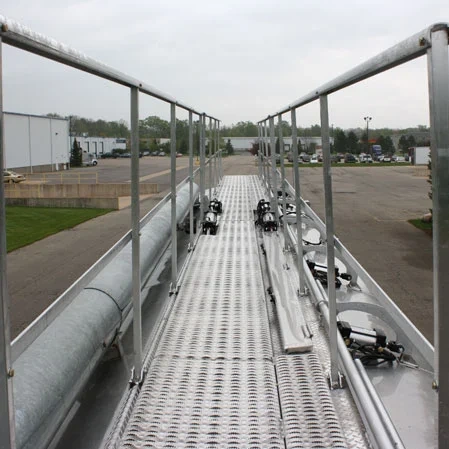

Air Operated Handrails

449x449Smart HMI Controller image

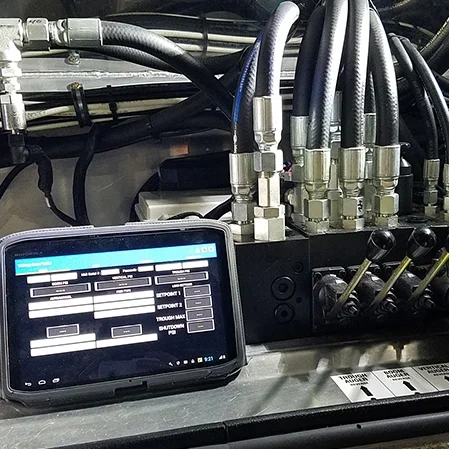

In-Cab HMI Smart Controller

449x449polished Unit2 image

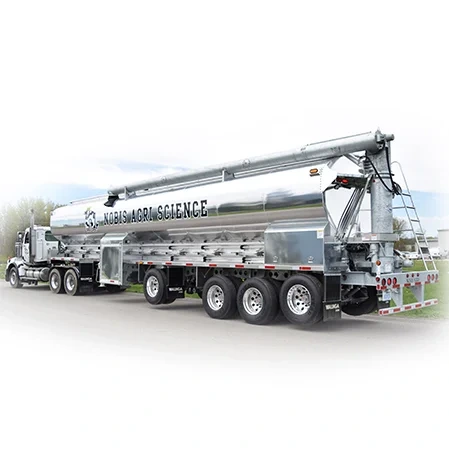

Smooth Polished Trailer

449x449StainlessHydraulicLines image

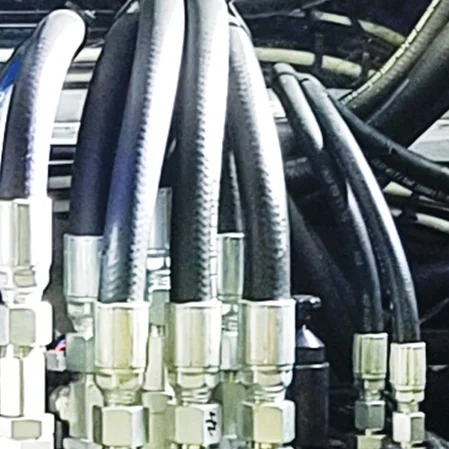

Stainless Hydraulic Lines

Feedlok image

Discharge Systems

Walinga offers a number of different options when it comes to unloading feed and grain. We offer auger unloading, air unloading, paddle chains, and drag chains.

See More
AirDischarge Nov17 image

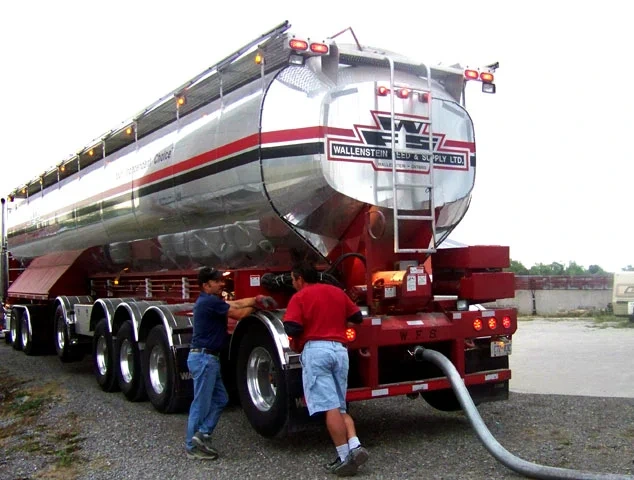

Air Discharge

The Walinga Pneumatic discharge system utilizes the Walinga designed and developed Super Duty Positive Displacement Blower, as well as the Walinga designed and developed Cast Iron Airlock.

AugerDischarge Nov17 image

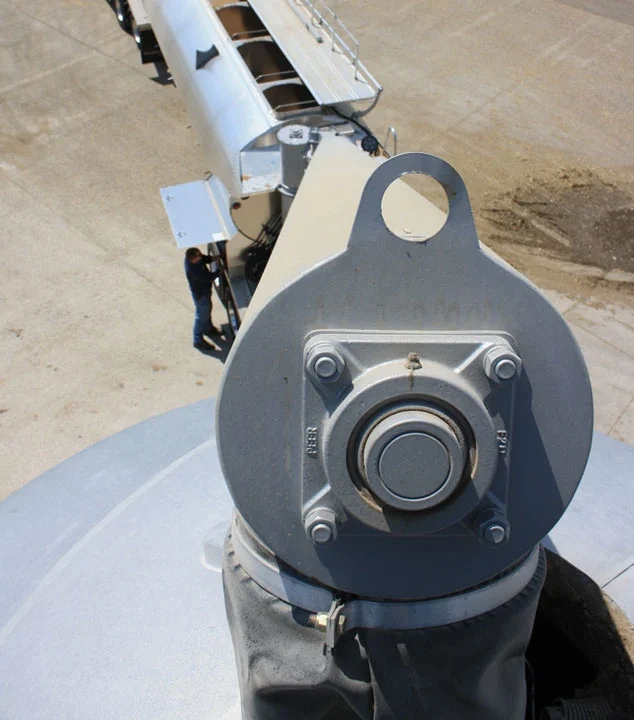

Auger Discharge

The Walinga design employs a 9in. (23cm) diameter trough auger with helicoid flighting on a 2 1/2 in (63mm) diameter shaft. Direct drive by a heavy duty, spring mounted high torque hydraulic motor incorporates automatic surge overload protection that controls the speed of the discharge augers. The design includes a heavy duty thrust bearing on the drive end and hanger bearing at the discharge end. A plastic (UHMW) liner in the auger trough is supplied to provide a tighter fit between auger and trough as well as prolonged life of trough.

Discharge Paddle image

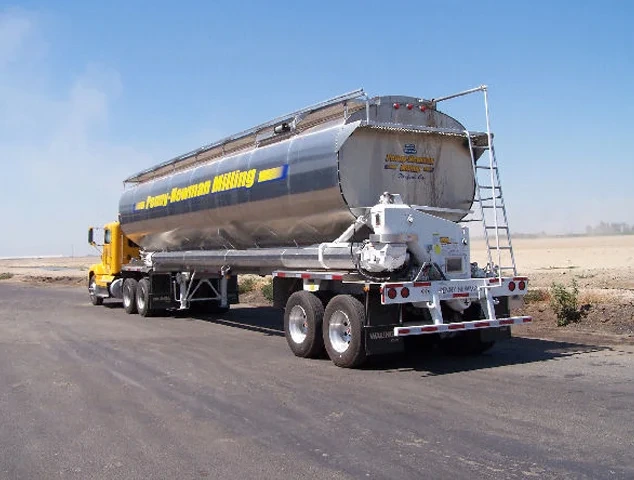

Paddle Discharge

Both systems incorporate the Walinga direct drive, heavy duty, spring mounted, high-torque hydraulic motor design. This system allows for better speed control of the discharge system and longer component life. Wear liners are also incorporated into the trough and paddle boom to provide you with better clean-out and longer wear life.

BlowerPackage image

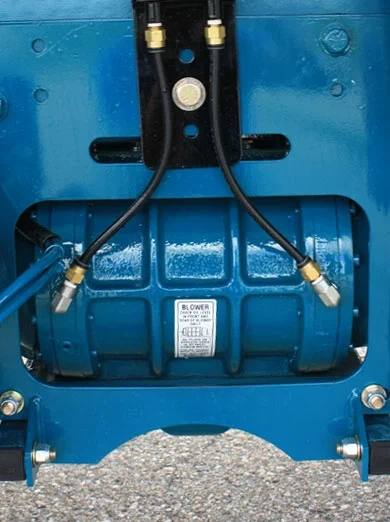

Blower Package

The Walinga Blower is a precision machined, Positive Displacement design blower. Hard coated internal surfaces provide for greater wear resistance in transfer applications. The Walinga blower is available in two prime sizes: Model 510-1100 cfm capacity and; Model 614-1800 cfm capacity.

AllBulk Option005 image

Transition Head

Double Chain flat paddle with horizontal sliding gates, which is ideal for typical Dairy "Sticky" feeds or in a 1/2 moon style Single chain paddle with Inverted "V" style gates, which is ideal for pelleted feeds and especially designed for "range cubes" or "cow cakes."

MonoBlock image

Rotary Vein Airlocks

The Walinga Airlock is a precision-machined cast iron housing hydraulically driven airlock. The Walinga manufactured airlocks have been designed to provide maximum performance, with minimal product damage. The fabricated steel rotor is available in 8 or 10 vane configurations with stainless steel, carbon steel knife edge or composite rubber adjustable tips. The inlets and outlet are designed to allow for a freer flow of material providing for maximum capacity and minimal product damage.

AllBulk Option006 image

Boom Rotation

The rotation of the Boom is by means of RC80 primary reduction and RD50 secondary reduction drives. Rated strength is 14,000 lbs. (6343 kg). Hydraulic over load protection is provided through a cross over relief valve.

HydraulicSuperCooler390x522 image

Inverted "V" Gates

Inverted "V" gates allow each compartment to be individually discharged of its load through selective operation of the gates. Manual type rack & pinion are standard. Air operated gates are offered as an option. With the inverted "V" gates, the gates can be closed "against the load."

Transfer Systems

The Walinga Ultra-Vac provides the operator with the flexibility to draw on left-over feed, clean-up spills or move product around the mill with a unit that is easy to run and easily brought to the farm. The Ultra-Vac can be located on either the tractor or on the trailer.

See More
Transfer Under image

3510-G Under Mount

Blower: #510
Airlock: #1210
Capacity*: 700 bu/hr, 18 tonnes/hr
Motor Power: 25 hp gas
Line Size: 4 in (100mm)

** Capacities based on using a 12Ft (3.65m) suction line moving corn or barley. Capacity will vary with condition of product. Due to continuous product development specifications subject to change without notice.

AllBulk Transfer003 image

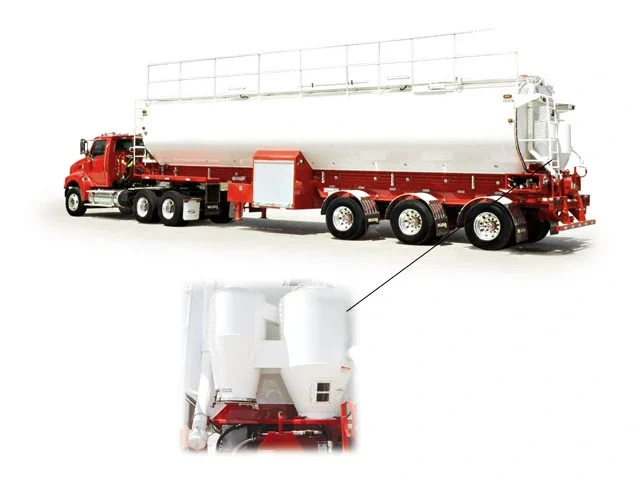

4510 Rear Mount

Blower: #510
Airlock: #1314
Capacity*: 1000 bu/hr, 27 tonnes/hr
Motor Power: PTO
Line Size: 4 in (100mm)

** Capacities based on using a 12Ft (3.65m) suction line moving corn or barley. Capacity will vary with condition of product. Due to continuous product development specifications subject to change without notice.

AllBulk Transfer002 image

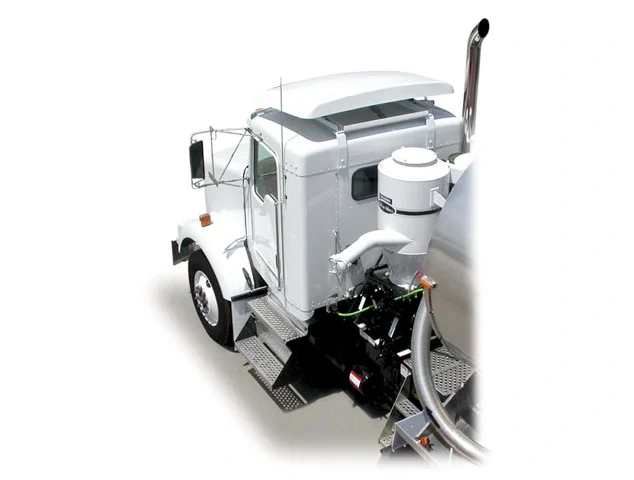

5510-T Tractor Mount

Blower: #510
Airlock: #1314
Capacity*: 2300 bu/hr, 59 tonnes/hr
Motor Power: PTO
Line Size: 5 in (125mm)

** Capacities based on using a 12Ft (3.65m) suction line moving corn or barley. Capacity will vary with condition of product. Due to continuous product development specifications subject to change without notice.

Videos

Warranty image

Walinga 5 Year Warranty

Walinga stands behind their product. ALL Walinga chassis are protected by an ALL INCLUSIVE Structural Warranty. That's right, ALL INCLUSIVE.

Iso image

Specialty Parts are a Snap

Walinga supplies standard or custom components that fit & perform exactly as intended. If you don't see what you need, our engineers can help.
